Swiss CNC Machining for Difficult Alloys
Swiss Machining Services

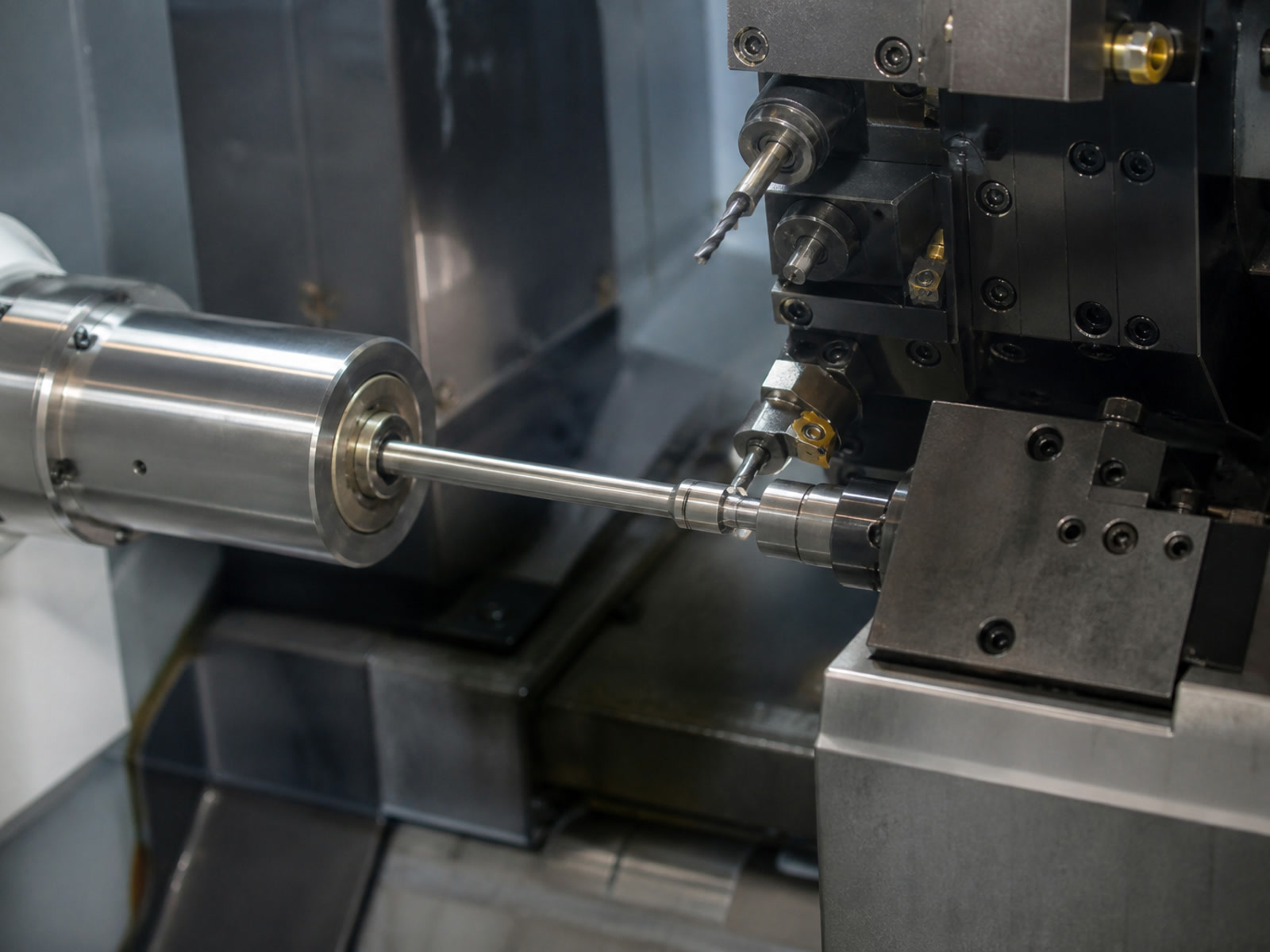

AXALLOY Precision provides Swiss CNC machining of small, high-value components made from difficult-to-machine alloys. Based in Shenzhen and serving global engineering, procurement and quality teams, we combine multi-axis Swiss turning with process control, documented quality and responsive communication—supporting projects from engineering prototypes through low-volume and repeat production.
Why AXALLOY for Swiss Machining
We combine metallurgical expertise, precision manufacturing and disciplined process control to deliver components that meet the most demanding engineering requirements.
Built for Difficult Alloys
Chip control, toolpath strategy, coolant management and tool selection tuned for nickel, titanium, PH and duplex stainless grades. Process planning considers geometry, tolerances, surface requirements and inspection strategy before metal cutting.
Precision at Small Scale
Dimensional tolerance down to ±0.005 mm and repeatability ±0.003 mm on miniature diameters and fine threads. Strong feature relationships from bar-fed, multi-axis operations with reduced setups.
End-to-End Support
DFM, tolerance review, fixture/tooling planning and manufacturing-process development. Special processes and finishing, inspection and project-specific documentation for export and regulatory needs.
Dependable Communication
Clear technical feedback, risk visibility, controlled change management and on-time delivery commitments. You always know where your project stands.
Swiss CNC Turning Capabilities
- Max bar diameter
- Ø32 mm
- Max part length
- 300 mm
- Min part diameter
- Ø0.5 mm
- Min thread size
- M0.8
- Max spindle speed
- 10,000 rpm
- Controlled axes
- Up to 7 axes
- Typical tolerance
- ±0.005 mm
- Repeatability
- ±0.003 mm
Supported operations: turning, milling, cross drilling, slotting, threading and back working.
Suitable parts: small shafts, pins, screws, connectors, medical components and precision fittings.
Complementary Processes
Precision Grinding
Surface, cylindrical, centerless grinding with tolerance down to ±0.002 mm and surface finish down to Ra 0.2 μm.
Wire & Sinker EDM
For features not reachable by turning or milling operations.
Secondary Operations
Heat treatment, passivation, coating, deburring, marking, cleaning and assembly support.
Tolerances, Surfaces & Features
- Dimensional tolerance: down to ±0.005 mm
- Repeatability: ±0.003 mm
- Precision machined finish: Ra 0.8 μm
- Ground finish: down to Ra 0.2 μm
- EDM finish: down to Ra 0.8 μm
- Complex features: cross-holes, slots, miniature threads (M0.8), back-working without re-chucking
- Thin walls: fine details on small-diameter components
Materials We Machine
Extensive experience across the most challenging alloy families used in critical applications.
Nickel-Based Superalloys
Inconel: 600, 601, 625, 690, 706, 718, 725, X-750
Hastelloy: C-22, C-276, B-2, X
Monel: 400, K-500
Haynes: 188, 230, 282
Others: Waspaloy, Nimonic, Rene alloys
Titanium Alloys
Grade 2, Grade 5 (Ti-6Al-4V), Grade 9, Grade 12, Grade 23 (ELI)
Cobalt & Specialty Metals
Cobalt Chrome, Stellite, L605, MP35N
Nitinol, molybdenum, tungsten, copper-nickel alloys
Tool steels: A2, D2, H13, M2
Stainless Steels & High-Temperature Steels
Austenitic: 304, 316L, 321
Martensitic: 410, 420, 440C
Precipitation Hardening: 15-5 PH, 17-4 PH
Duplex: 2205, Super Duplex 2507
High-Temperature: A286, Nitronic 50/60
Industries & Best-Fit Projects
We serve sectors where component reliability, material performance and documented quality are non-negotiable.
Industries Served
Aerospace, medical devices, semiconductor equipment, energy, oil and gas, marine, robotics, automation and precision industrial equipment.
Best-Fit Project Profiles
- Technical: complex geometry, thin walls, critical interfaces, tight tolerances, demanding surfaces
- Commercial: high-value prototypes, low-volume/high-mix production, repeat programs, supplier transfers
- Quality: material certification, FAIs, dimensional reports, special-process records
Ideal Decision-Makers
- Mechanical/design/manufacturing engineers seeking DFM and a stable route
- Procurement teams balancing capability, delivery and total supply risk
- Quality teams requiring inspection evidence, traceability and controlled documentation
Volumes & Lead Times
Expedited service available on request.
Quality & Inspection
- CMM measuring range: 700 × 1,000 × 600 mm (accuracy 1.8 + L/300 μm)
- Optical measurement accuracy: ±0.002 mm
- Surface roughness: Ra 0.05–40 μm
- Hardness testing: Rockwell, Brinell, Vickers
- Thread gauges & optical measurement
- Temperature-controlled inspection room
Design for Swiss Machining
Practical guidelines to ensure your parts are optimized for Swiss CNC manufacturing success.
- 1. Provide both 2D drawings and 3D models with critical features clearly identified
- 2. Specify thread standards (pitch, class, lead-in/out, gauging) and any special thread reliefs
- 3. Call out geometric tolerances (position, concentricity, roundness) on critical interfaces
- 4. Target feature sizes within capability: minimum Ø0.5 mm diameter, M0.8 threads
- 5. Consider manufacturable wall thickness for small diameters; consult us for thin-wall DFM
- 6. Define surface finish requirements by area, and note post-processing needs
- 7. Highlight inspection and documentation expectations early (FAI, traceability)
- 8. Share expected quantities, target dates and repeat-program considerations
RFQ Checklist & File Formats
Supported File Formats
3D CAD: STEP/STP, IGES/IGS, X_T/X_B, SLDPRT, SAT
2D Drawings: PDF, DWG, DXF
Images: JPG, PNG, TIFF
Compressed: ZIP, RAR
Max upload size: 500 MB per RFQ · Units: millimeters and inches
RFQ Checklist
- Complete 2D drawing + 3D model
- Material and specification (grade, condition)
- Quantities and delivery schedule
- Tolerances and critical features
- Surface finish and special processes
- Inspection and documentation requirements
- Packaging, labeling and export needs
Frequently Asked Questions
What sizes can you handle with Swiss machining?
Up to Ø32 mm bar diameter and 300 mm part length, with minimum diameters down to Ø0.5 mm and threads down to M0.8.
Which materials are best suited?
We specialize in difficult alloys including Inconel, Hastelloy, titanium, 17-4 PH/15-5 PH, duplex/super duplex stainless, cobalt alloys and select specialty metals like MP35N and Nitinol.
Can you meet tight GD&T requirements?
Yes—our process controls, multi-axis capability and inspection resources support tight position, concentricity and roundness requirements. We can add precision grinding when needed.
Do you provide FAIs and traceability?
Yes—FAIs, full dimensional reports, material/lot traceability and special-process records are available per project needs.
What if my part needs EDM or grinding after Swiss turning?
We provide precision grinding, wire EDM and sinker EDM to complete complex features and achieve demanding finishes and tolerances.
Get a Quote
Ready to discuss your Swiss machining project? Send your RFQ with drawings and models, target quantities and required documentation. Our engineering team will review manufacturability, provide DFM feedback where helpful and define a stable, controlled production route.
