15-5 PH CNC Machining
We precision-machine 15-5 PH stainless steel components to tight tolerances, with controlled processes and complete inspection documentation — from prototype through low-volume and repeat production.
Send your drawings and models for a manufacturable plan, lead time and pricing.
Why choose us for 15-5 PH CNC machining
Difficult-alloy expertise
We specialize in difficult-to-machine alloys and high-value parts where manufacturability and process control matter more than the lowest unit price.
Global engineering support
We support international engineering, procurement and quality teams with dependable communication and export-ready documentation.
Process-driven planning
The machining route is planned around 15-5 PH material condition (Condition A and H900–H1150-M age states), geometry, tolerance stack, surface requirements, inspection strategy and volume.

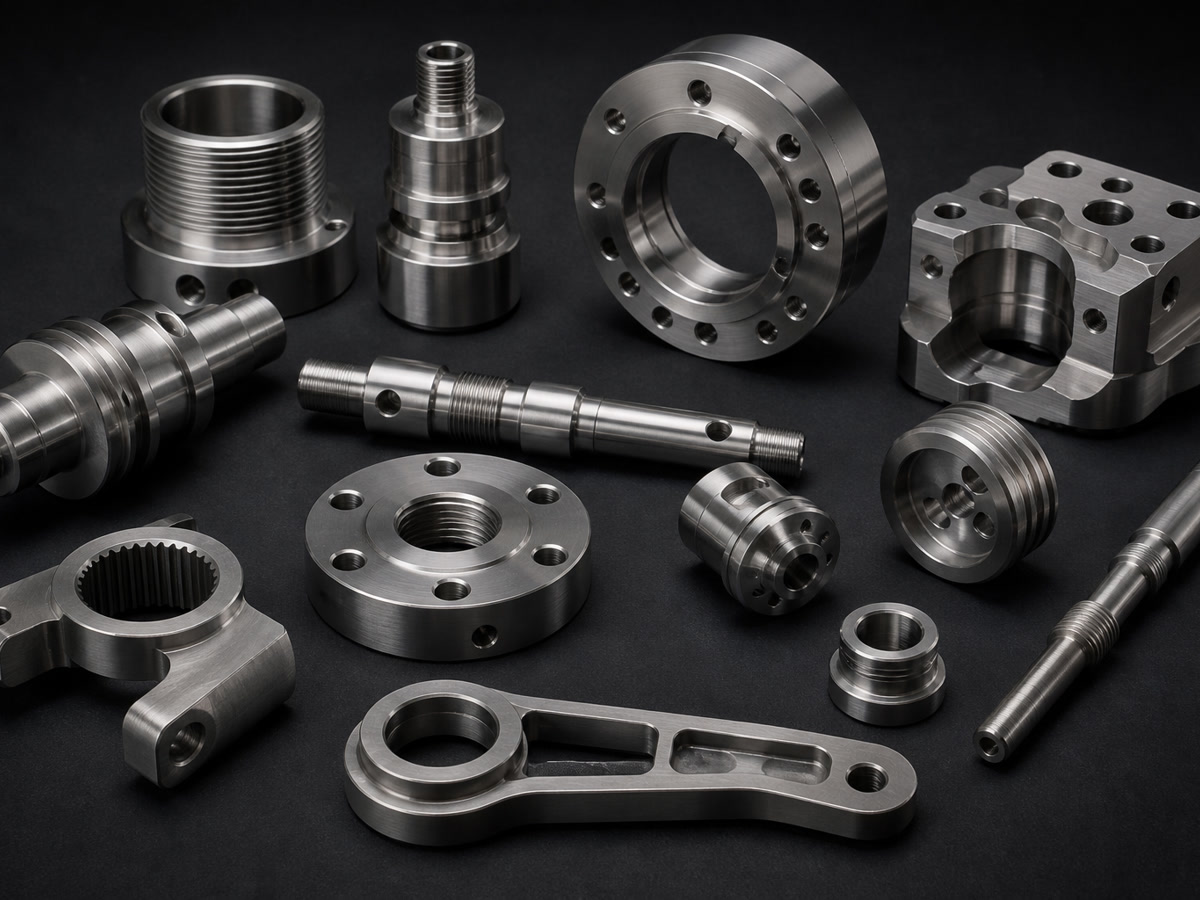

What we machine in 15-5 PH
- Complex housings, brackets and structural components with thin walls and precision interfaces
- Shafts, bushings, sleeves, pins and threaded fittings
- Valve parts, connectors, manifolds, nozzles and multi-feature rotational components
- Precision inserts, profiles and tight-tolerance features (via EDM and grinding where appropriate)
15-5 PH machining approach
- Material condition (Condition A vs. aged state), geometry, tolerance risk and surface requirements are evaluated before defining the machining process.
- Where needed, parts are roughed in a more machinable state and finished after age hardening, using fixturing and process controls to maintain dimensional stability.
- Burr formation, work hardening and heat input are controlled with appropriate tools, feeds/speeds, coolants and toolpath strategies for precipitation-hardening stainless steels.
- Precision grinding and EDM are used for critical fits and sealing surfaces to meet geometric accuracy and finish targets.
Core capabilities for 15-5 PH
Multi-axis CNC milling
3-, 4- and 5-axis for complex contours, pockets and thin walls
- Tolerances down to ±0.005 mm
- Max 3-axis size: 1,000 × 600 × 600 mm
- Max 5-axis size: Ø500 × 400 mm
- Positioning accuracy: ±0.005 mm; repeatability: ±0.003 mm
- Typical finishes: Ra 1.6 μm standard, Ra 0.8 μm precision; ground down to Ra 0.2 μm
CNC turning and mill-turn
Live tooling, Y-axis, sub-spindle
- Max turning Ø500 mm × 1,000 mm length
- Mill-turn up to Ø400 mm × 800 mm length
- Diameter tolerance down to ±0.005 mm; concentricity down to 0.008 mm
- Strong feature relationships with fewer setups
EDM and precision grinding
For critical features and hardened conditions
- Wire EDM accuracy down to ±0.005 mm; minimum cutting width 0.15 mm
- Sinker EDM minimum internal corner radius R0.05 mm
- Grinding tolerance down to ±0.002 mm; flatness down to 0.003 mm; roundness down to 0.002 mm
Special processes and finishes
- Heat treatment route planning for 15-5 PH (Condition A, H900–H1150-M)
- Passivation, coating, deburring, precision cleaning and marking
- Assembly support on request
Prototype to production
- Prototype quantities: 1–20 parts
- Low-volume production: 20–500 parts
- Batch production: 500–10,000+ parts
- Minimum order quantity: 1 part
Inspection and quality documentation
- CMM measuring range: 700 × 1,000 × 600 mm; accuracy up to 1.8 + L/300 μm
- Optical measurement accuracy: ±0.002 mm; temperature-controlled inspection room
- Full inspection options: First Article Inspection (FAI), full dimensional reports, surface roughness, hardness testing (Rockwell, Brinell, Vickers)
Available documentation
- Material Test Report / Mill Test Certificate
- Certificate of Conformance
- First Article Inspection Report
- Ballooned drawing and full dimensional reports
- Heat treatment and coating certificates
- Material and lot traceability
- Special process records
- Inspection photos on request
Industries we serve
Aerospace, medical devices, semiconductor equipment, energy, oil and gas, marine, robotics, automation and precision industrial equipment.
We work with OEMs, Tier 1/Tier 2 suppliers, engineering firms, contract manufacturers and product-development companies across North America, Europe, UK, Australia, New Zealand and advanced Asian markets.
Typical project profiles
- Complex geometry, thin walls, tight geometric tolerances, demanding surfaces and difficult threads/holes
- High-value prototypes, low-volume or high-mix production, repeat programs and supplier transfers
- Projects needing material certification, FAI, dimensional reports and export-ready packaging
Not an ideal fit
Commodity parts purchased only on lowest price, incomplete technical requirements, unverified certification demands or unauthorized component reproduction.
Lead times and delivery
- Prototype lead time: 5–10 business days
- Standard production: 10–20 business days
- Expedited service available upon request
- Metric and imperial units; export-ready packaging
RFQ checklist for 15-5 PH CNC machining
To quote accurately and quickly, please include the following with your inquiry:
- 2D drawings with tolerances and critical features clearly identified
- 3D CAD model (STEP/IGES etc.) matching the drawing
- Material specification: 15-5 PH, required condition (Condition A, H900–H1150-M), heat-treatment notes
- Quantities and delivery schedule (prototype, low-volume or repeat production)
- Surface finish requirements and special processes (passivation, coating, marking, cleaning)
- Inspection scope (FAI, full dimensional, certificates, traceability)
- Packaging, labeling and export requirements
- Applicable standards or specifications
- Your preferred NDA if needed
Supported file formats
- 3D CAD: STEP, STP, IGES, IGS, X_T, X_B, SLDPRT, SAT
- 2D drawings: PDF, DWG, DXF
- Images: JPG, PNG, TIFF | Compressed: ZIP, RAR
- Max upload size per RFQ: 500 MB
Request an RFQ
Send your drawings and models with the RFQ checklist. We will review manufacturability, confirm the process route and provide a detailed quotation.
About AXALLOY Precision
We are a Shenzhen-based CNC machining partner focused on complex, high-value components in difficult alloys — including 15-5 PH stainless steel, 17-4 PH, Inconel, Hastelloy, titanium and cobalt-based alloys.
We provide multi-axis milling, turning, mill-turn, EDM, grinding, special processes, engineering support and inspection/documentation from prototype through repeat production.
Ready to request an RFQ?
- Send your drawings and models with the RFQ checklist.
- Tell us your target date and inspection/documentation requirements.
- We will review manufacturability, confirm the process route and provide a detailed quotation.
