Difficult-Alloy Precision CNC Machining

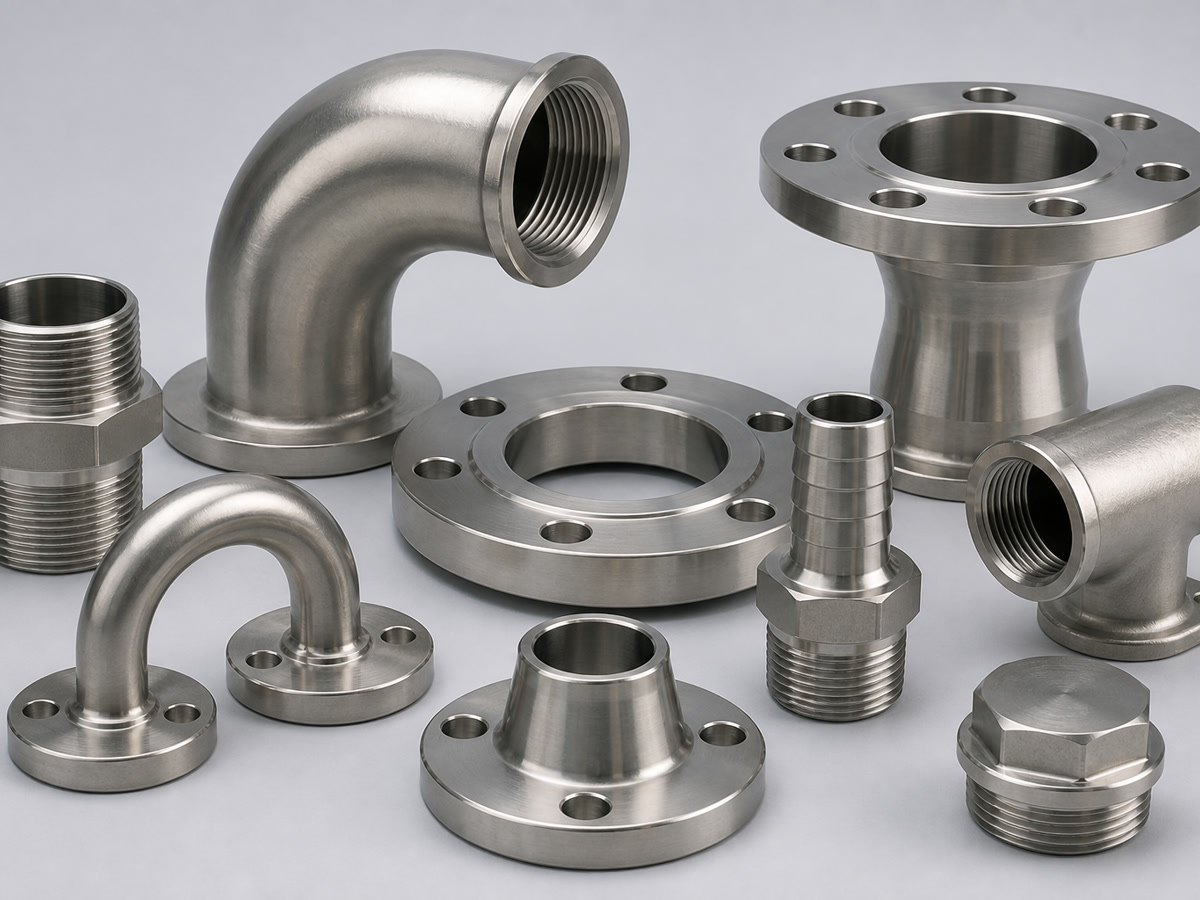

Precision CNC Machining for Duplex Marine Parts: Engineered for Harsh Environments
When designing equipment for saltwater, high-pressure, and highly corrosive environments, engineers frequently specify Duplex and Super Duplex stainless steels. While these materials offer exceptional strength and corrosion resistance, their high work-hardening rates and cutting forces make them notoriously difficult to machine.
At AXALLOY, we specialize in solving these manufacturing challenges. As your CNC machining partner, we transform difficult alloys into complex, tight-tolerance duplex marine parts that are ready for assembly. Whether you need a single prototype for design validation or a controlled batch of 500 components, we provide the process control, engineering feedback, and documentation required by marine and offshore engineering teams.
What You Get When Partnering With AXALLOY
We understand that procurement and engineering teams in the marine, offshore, and oil & gas sectors value reliability and compliance above all else. Here is exactly how our machining process supports your project goals:
Parts That Fit Perfectly on the First Try
Duplex stainless steels are prone to distortion during machining. Instead of leaving tolerances to chance, our engineering team evaluates your geometry and plans specific tooling, tool paths, and fixturing strategies to manage material stress. You receive parts with complex contours, thin walls, and precise threads that assemble seamlessly into your marine equipment, eliminating costly rework.
Predictable Lead Times to Prevent Project Delays
In the marine sector, equipment downtime is expensive. We do not just process orders; we actively manage manufacturing schedules to keep your project moving. Our standard 5–10 business day turnaround for prototypes allows your engineering team to test and iterate faster. For repeat low-volume production (10–20 days), our controlled processes ensure parts arrive exactly when your supply chain expects them, mitigating supply risk.
Audit-Ready Quality Documentation
Marine classification societies demand strict traceability. You will never have to guess what material was used for your components. We provide complete Material Test Reports (MTRs), First Article Inspection (FAI) reports, and dimensional records with your shipment. Your quality managers get exactly what they need to approve the parts and pass compliance audits without friction.
Direct Engineering Communication
If a specific internal corner radius or deep-hole tolerance on your duplex part will cause unnecessary manufacturing costs or risks, we will tell you before cutting metal. You receive actionable Design for Manufacturability (DFM) feedback, ensuring the final component meets your functional requirements while remaining economically viable to produce.
Machining Capabilities for Duplex Marine Parts
We utilize multi-axis CNC milling, turning, and mill-turn centers to produce complex rotational components, housings, manifolds, and valve bodies.
Supported Marine-Grade Alloys
- ● Duplex Stainless Steels: Duplex 2205 (UNS S31803 / S32205)
- ● Super Duplex Stainless Steels: Super Duplex 2507 (UNS S32750)
- ● Other Marine Alloys: Titanium (Grades 2, 5, 23), Monel (400, K-500), Hastelloy (C-276), 316L Stainless Steel, and 17-4 PH.
| Parameter | Standard Capability | Precision Capability |
|---|---|---|
| Production Volume | 1–500 parts (Low-Volume) | Up to 10,000+ parts (Batch) |
| Dimensional Tolerance | ±0.010 mm | Down to ±0.005 mm |
| Position Tolerance | Standard | Down to 0.010 mm |
| Concentricity | Standard | Down to 0.008 mm |
| Surface Finish | Ra 1.6 μm | Down to Ra 0.8 μm (Machined) / Ra 0.2 μm (Ground) |
| Max Milling Size (3-Axis) | 1,000 × 600 × 600 mm | 800 kg Max Table Load |
| Max Milling Size (5-Axis) | Ø500 × 400 mm | Complex contours & precision interfaces |
| Max Turning Capacity | Ø500 mm (Diameter) | 1,000 mm (Length) |
| Mill-Turn Machining | Up to 9 axes controlled | Main/Sub-spindle, C-axis, Y-axis |
| Minimum Wall Thickness | 0.5 mm | Evaluated based on geometry |
| Minimum Thread Size | M1.0 | Standard and custom marine threads |
Material & Inspection Focus
Duplex marine parts require absolute certainty in both raw material integrity and final dimensional accuracy. We source premium metals and verify every critical feature in our temperature-controlled inspection room.
Quality Control & Documentation
| CMM Measurement | Up to 700 × 1,000 × 600 mm (Accuracy: 1.8 + L/300 μm) |
| Material Test Report (MTR) | Standard – Full material traceability |
| First Article Inspection (FAI) | Available for prototype validation & new batches |
| Full Dimensional Report | Available |
| Certificate of Conformance | Standard |
| Surface Roughness Report | Available (Ra 0.05–40 μm measurement range) |
| Thread Inspection | Thread gauges and optical measurement |
| Special Process Records | Passivation, coating, and heat treatment certificates |
Why Material Integrity Matters
For marine applications, material certification is non-negotiable. Our sourcing process ensures every duplex and super duplex alloy is accompanied by full mill certifications and traceability back to the original heat. Combined with our in-house inspection capabilities, this gives you complete confidence in every part we ship.
- ✓ Certified raw materials with full traceability
- ✓ Temperature-controlled inspection environment
- ✓ Calibrated CMM and surface measurement equipment
- ✓ Compliant with marine classification requirements
Start Your Project: Request a Quote
If you are dealing with complex geometries, demanding surfaces, or require a stable production route for your duplex marine parts, AXALLOY is ready to evaluate your project. We support OEMs, Tier 1/Tier 2 suppliers, and engineering firms across North America, Europe, the UK, and Australasia.
How to Get an Accurate Quote
To help us provide a precise manufacturing plan and pricing, please send us your project details:
- 1 3D CAD Files (STEP, IGS, X_T) for geometry evaluation
- 2 2D Drawings (PDF, DWG) indicating critical tolerances, threads, and surface finish requirements
- 3 Material Specifications (e.g., Duplex 2205)
- 4 Expected Quantities (Prototype and production volumes)
- 5 Required Documentation (MTRs, CMM reports, etc.)
Submit your RFQ today. Our engineering team will review your drawings, evaluate material behavior and tolerances, and return a detailed proposal to keep your marine manufacturing schedule on track.
