Difficult-Alloy Precision CNC Machining

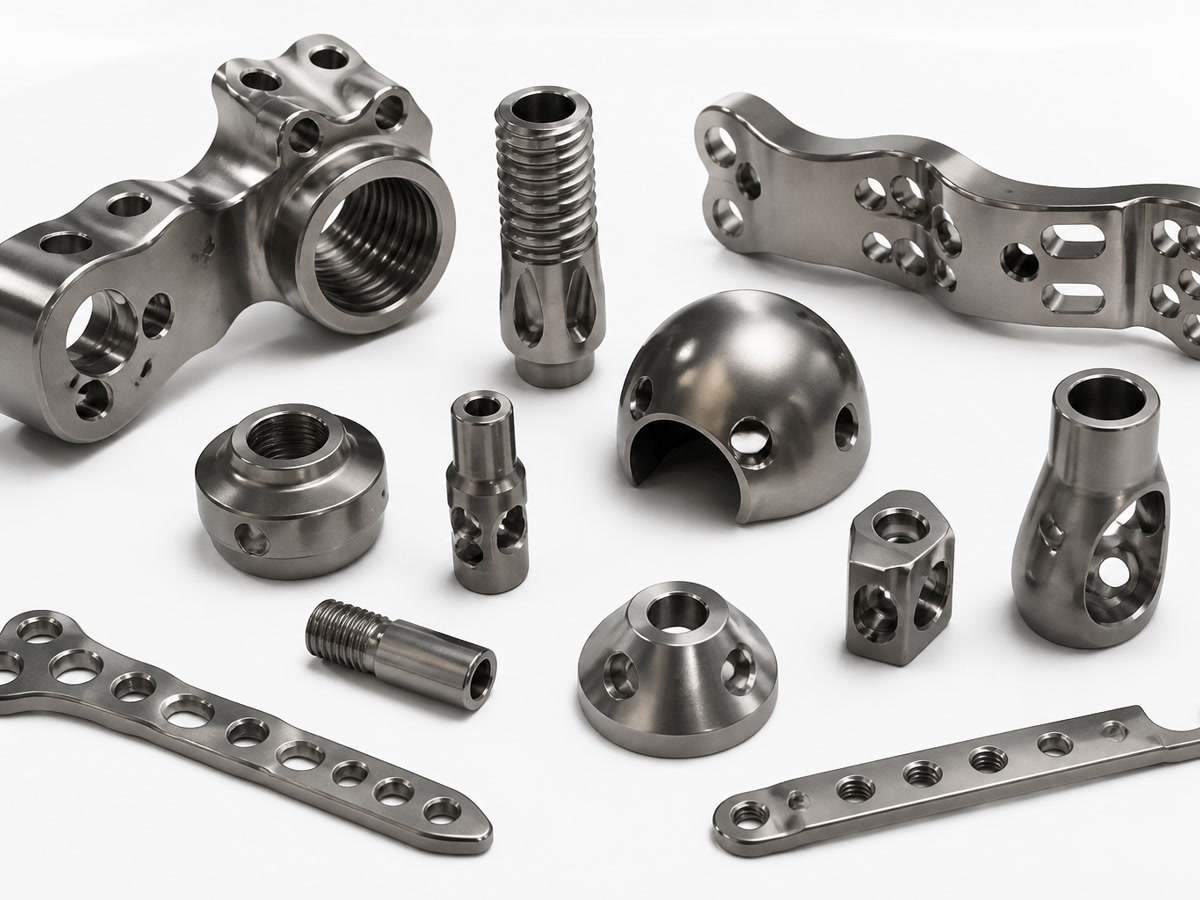

Precision CNC Machining for Grade 5 Titanium Medical Parts
AXALLOY Precision is a Shenzhen-based CNC machining partner specializing in the manufacturing of complex, high-value components for the medical device sector. We provide advanced manufacturing solutions for Grade 5 Titanium medical parts, supporting international engineering, procurement, and quality teams from initial prototype development through low-volume and controlled repeat production.
For medical OEMs, contract manufacturers, and product-development companies, we deliver not just machined parts, but absolute process control, comprehensive documentation, and dependable communication.
Why Grade 5 Titanium for Medical Applications?
Grade 5 Titanium (Ti-6Al-4V) is the industry standard for orthopedic implants, bone screws, surgical instruments, and critical medical devices. It offers exceptional biocompatibility, a high strength-to-weight ratio, and outstanding corrosion resistance.
However, titanium's low thermal conductivity, high strength, and tendency to gall make it a notoriously difficult alloy to machine. Heat buildup at the cutting edge can lead to rapid tool wear and dimensional instability. AXALLOY Precision overcomes these challenges through optimized toolpaths, rigid workholding, customized cutting parameters, and specialized coolant strategies, ensuring your critical medical components meet exact specifications every time.
Core Machining Capabilities for Medical Devices
Whether you are developing complex anatomical contours, micro-scale threads, or thin-walled surgical housings, our facility is equipped to handle the most demanding geometries.
Multi-Axis CNC Milling
We utilize 3-axis, 4-axis, and 5-axis machining centers to produce complex contours, pockets, and precision interfaces. We achieve positioning accuracy of ±0.005 mm and repeatability of ±0.003 mm, ideal for complex implant geometries and surgical tool handles.
Swiss CNC Turning
Essential for small, high-precision medical components like bone screws, pins, and dental implants. Our up to 7-axis Swiss lathes handle bar diameters from Ø0.5 mm to Ø32 mm, executing turning, milling, cross-drilling, and threading in a single setup with tolerances down to ±0.005 mm.
Mill-Turn Machining
For multi-feature rotational components requiring fewer setups and stronger feature relationships. Our 9-axis mill-turn centers handle complex shafts, connectors, and valve bodies up to Ø400 mm.
Wire & Sinker EDM
When medical designs require extremely narrow slots (down to 0.15 mm width), sharp internal corners (R0.05 mm), or intricate blind features, our EDM capabilities provide stress-free material removal with surface finishes down to Ra 0.4 μm.
Precision Grinding
For sealing surfaces, bearing fits, and joint interfaces requiring exceptional smoothness, our cylindrical and surface grinding processes achieve flatness down to 0.005 mm and surface finishes as fine as Ra 0.2 μm.
Strict Quality Control and Traceability
In the medical device industry, documentation and traceability are just as critical as the physical part. AXALLOY is best suited for quality-driven teams that require verifiable inspection evidence and controlled documentation.
Our temperature-controlled inspection room features advanced CMM (measuring range up to 700 × 1,000 × 600 mm) and optical measurement systems. We provide comprehensive quality documentation tailored to medical industry requirements, including:
- ✓ Material Test Reports and Mill Test Certificates (ensuring full material and lot traceability)
- ✓ First Article Inspection (FAI) Reports
- ✓ Full Dimensional Inspection Reports and Ballooned Drawings
- ✓ Certificates of Conformance (CoC)
- ✓ Surface Roughness and Special Process Records (Heat treatment, passivation, coating, etc.)
Engineering Support: From Prototype to Production
We do not simply machine to print; we partner with your mechanical and manufacturing engineers to establish a stable, repeatable production route.
Engineering & DFM
We conduct thorough drawing reviews, providing Design for Manufacturability (DFM) feedback, tolerance reviews, and fixture planning before chips are made.
Prototyping (1–20 parts)
Fast-track design validation and functional testing with prototype lead times of 5–10 business days.
Low-Volume to Batch Production (20–10,000+ parts)
Once the process is validated, we scale seamlessly into controlled repeat production, mitigating total supply risk for your procurement team.
Start Your Grade 5 Titanium Project
AXALLOY Precision is the ideal partner for high-mix, high-value medical projects, especially those transferring from unreliable suppliers or requiring stringent geometric tolerances and demanding surface finishes.
To initiate a project review, please provide complete 2D drawings (PDF, DWG) and 3D models (STEP, IGES, SLDPRT), along with your defined material grades, critical features, required quality documentation, and target quantities.
Contact our engineering team today to discuss your Grade 5 Titanium medical parts and secure a reliable manufacturing partner.
