Haynes Alloy CNC Machining: Fast, Reliable Support for Your High-Value Parts

AXALLOY Precision provides dedicated CNC machining for Haynes Alloy components. We focus on parts that need precise geometry, tight tolerances, and full traceability from prototype through low-volume runs.

Our goal is to deliver parts on schedule so you can meet your project timelines and keep your production stable.

Request a Quote View Capabilities

Why Choose AXALLOY for Haynes Alloy CNC Machining

We evaluate your drawing, material requirements, and volume first, then select the best process — 5-axis milling, mill-turn, or EDM — to cut setup time and reduce risk of defects.

Tight tolerances you can trust

We hold ±0.005 mm on diameter and ±0.005 mm on position for most Haynes parts. You receive a complete dimensional report that supports your quality records.

Full material traceability from day one

We supply Material Test Reports, Mill Test Certificates, and lot-specific documentation for every Haynes Alloy order. This satisfies customer audits and reduces your incoming inspection effort.

Special processes built for Haynes Alloys

We offer EDM, precision grinding, heat treatment, and passivation on Inconel 718/625, Hastelloy C-276/C-22, MP35N, and other difficult grades. You get consistent surface finish and dimensional stability without extra suppliers.

Fast cycle times for high-mix and repeat programs

Standard lead time is 10–20 business days. Prototype parts reach you in 5–10 business days. This speed lets you test designs early and move repeat orders without waiting for long lead times.

Single-supplier quality and communication

One team handles DFM feedback, fixture planning, and inspection. You receive ballooned drawings, first-article reports, and photos — everything needed for your own records.

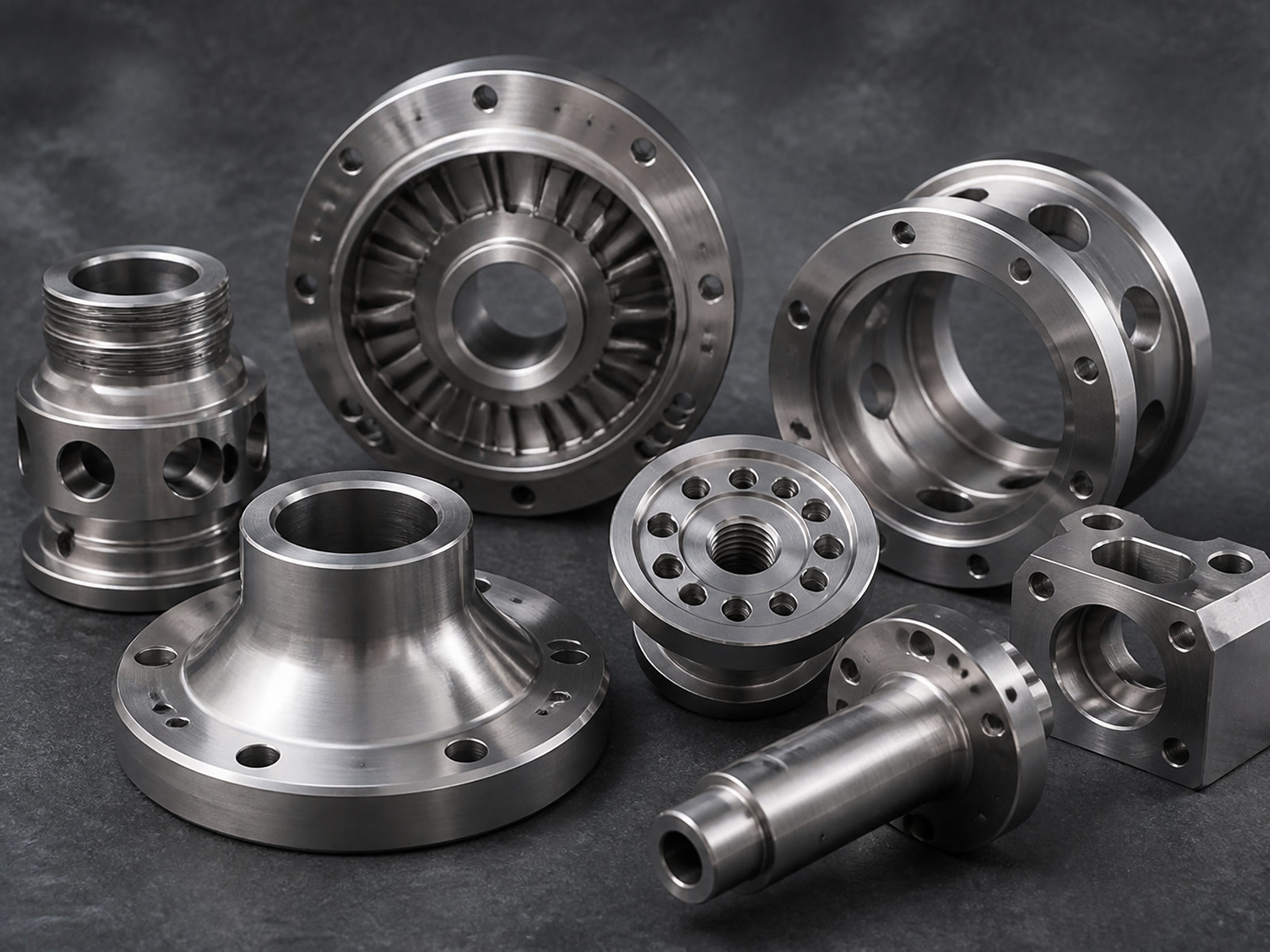

Haynes alloy CNC machined precision components

Core Machining Capabilities for Haynes Alloys

Comprehensive production capacity across prototype, low-volume, and batch manufacturing programs.

Parameter	Standard Capability
Supported Production Volume	1–10,000+ parts
Prototype Quantity	1–20 parts
Low-Volume Production	20–500 parts
Batch Production	500–10,000+ parts
Standard Dimensional Tolerance	±0.010 mm
Precision Dimensional Tolerance	±0.005 mm
Standard Angular Tolerance	±0.5°
Precision Angular Tolerance	±0.1°
Minimum Wall Thickness	0.5 mm
Minimum Machined Hole Diameter	Ø0.5 mm
Maximum Part Weight	1,000 kg
Standard Lead Time	10–20 business days
Prototype Lead Time	5–10 business days

Specific Haynes Alloy CNC Machining Capabilities

5-Axis CNC Milling

Maximum 5-Axis Part Size	Ø500 × 400 mm
Maximum Table Load	800 kg
Maximum Spindle Speed	20,000 rpm
Positioning Accuracy	±0.005 mm
Milling Tolerance	Down to ±0.005 mm
Minimum Internal Corner Radius	R0.3 mm
Maximum Travel (X × Y × Z)	1,000 × 600 × 600 mm

Precision Grinding

Grinding Tolerance	Down to ±0.002 mm
Surface Finish	Down to Ra 0.2 μm
Suitable Parts	Shafts, sealing surfaces, bearing fits

Wire & Sinker EDM

Maximum Workpiece Size	600 × 400 × 300 mm
Surface Finish	Down to Ra 0.4 μm
Minimum Internal Corner Radius	R0.05 mm

Supported Haynes Alloy Grades

We machine a broad range of difficult nickel and cobalt-based alloys with process parameters and fixturing tuned to handle their work-hardening and thermal properties.

Inconel 718 Inconel 625 Hastelloy C-276 Hastelloy C-22 Haynes 188 Haynes 230 Haynes 282 MP35N

And other selected grades per your application requirements.

Ready to Start Your RFQ?

Upload your 3D model (STEP/IGES) or 2D drawing (DWG/PDF) with defined material, critical features, and quantity. Our team reviews manufacturability and responds within one business day.

This process control, documentation, and speed help you reduce total supply risk and keep your critical parts moving.
