M2 CNC Machining Services | Precision Tool Steel Components
AXALLOY Precision is a premier Shenzhen-based CNC machining partner specializing in complex, high-value components made from difficult-to-machine alloys. If your engineering or procurement team is looking for a reliable partner for M2 CNC machining, we provide the technical expertise, process control, and rigorous quality documentation required to deliver precision tool steel parts from prototype to production.
Why Choose AXALLOY for M2 CNC Machining?
M2 is a molybdenum-based high-speed tool steel known for its exceptional wear resistance, toughness, and ability to maintain hardness at elevated temperatures. However, its high carbon and alloy content makes it notoriously difficult to machine, especially in its hardened state.
At AXALLOY, we do not compete on being the cheapest commodity shop; we compete on manufacturability, process stability, and dependable communication. We support OEMs, Tier 1/2 suppliers, and engineering firms across North America, Europe, and advanced Asian markets with a comprehensive approach to M2 tool steel.
-
1
Engineering Support
Pre-production drawing reviews, DFM feedback, and specialized fixture planning for rigid M2 machining.
-
2
Comprehensive Processing
Combining multi-axis milling, turning, Wire/Sinker EDM, and precision grinding to achieve complex geometries and tight tolerances on hardened M2.
-
3
Special Processes Management
We manage the entire lifecycle, including heat treatment, precision grinding post-heat treat, deburring, and surface finishing.
Our M2 CNC Machining Capabilities
We leverage advanced CNC technology to handle the unique challenges of M2 tool steel, ensuring critical interfaces, thin walls, and tight geometric tolerances are met consistently.
1. Multi-Axis CNC Milling
For complex M2 housings, brackets, plates, and structural components, we utilize advanced 3-axis, 4-axis, and 5-axis CNC milling centers.
- Precision ToleranceDown to ±0.005 mm
- Spindle SpeedsUp to 20,000 rpm
- Max Part Size (5-Axis)Ø500 × 400 mm
2. CNC Turning & Mill-Turn Machining
Ideal for M2 shafts, punches, sleeves, and multi-feature rotational components requiring fewer setups and stronger feature relationships.
- CapabilitiesUp to 9-axis mill-turn
- Swiss CNC TurningDown to Ø0.5 mm
- Concentricity / Roundness0.008 / 0.005 mm
3. Wire & Sinker EDM
Because M2 is often heat-treated to high hardness levels, EDM is a critical process for cutting narrow slots, sharp internal corners, deep cavities, and precision inserts without inducing mechanical stress.
- Wire EDM Accuracy±0.005 mm / Ra 0.8 μm
- Sinker EDM Corner RadiusR0.05 mm minimum
4. Precision Grinding
To achieve the ultimate surface finish and dimensional accuracy on hardened M2 tool steel, we offer surface, cylindrical, and centerless grinding.
- Grinding ToleranceDown to ±0.002 mm
- Surface FinishDown to Ra 0.2 μm
Technical Specifications & Tolerances
| Parameter | AXALLOY Standard / Precision Capability |
|---|---|
| Production Volume | Prototypes (1–20), Low-Volume (20–500), Batch (500–10,000+) |
| Dimensional Tolerance | Standard: ±0.010 mm | Precision: ±0.005 mm |
| Flatness / Concentricity | Down to 0.005 mm / Down to 0.008 mm |
| Surface Finish | Machined: Ra 0.8 μm | Ground: Ra 0.2 μm | EDM: Ra 0.8 μm |
| Minimum Features | Wall Thickness: 0.5 mm | Hole: Ø0.5 mm | Thread: M0.8 (Swiss) |
| Lead Times | Prototypes: 5–10 business days | Standard: 10–20 business days |
Uncompromising Quality Control & Documentation
Quality and procurement managers trust AXALLOY because we provide total transparency and traceability. Our temperature-controlled inspection lab is equipped with advanced CMMs (Accuracy up to 1.8 + L/300 μm), optical measurement systems, and hardness testers (Rockwell, Vickers) essential for verifying M2 heat treatments.
Available Quality Documentation
- Material Test Reports & MTC
- First Article Inspection (FAI)
- Full Dimensional Inspection Reports
- Heat Treatment Certificates
- Material & Lot Traceability
- Ballooned Drawing Reports
Ideal Applications for M2 Machined Parts
Our M2 CNC machining services are perfectly aligned with the demanding technical profiles of industries such as Aerospace, Medical Devices, Semiconductor Equipment, Robotics, and Precision Industrial Automation.

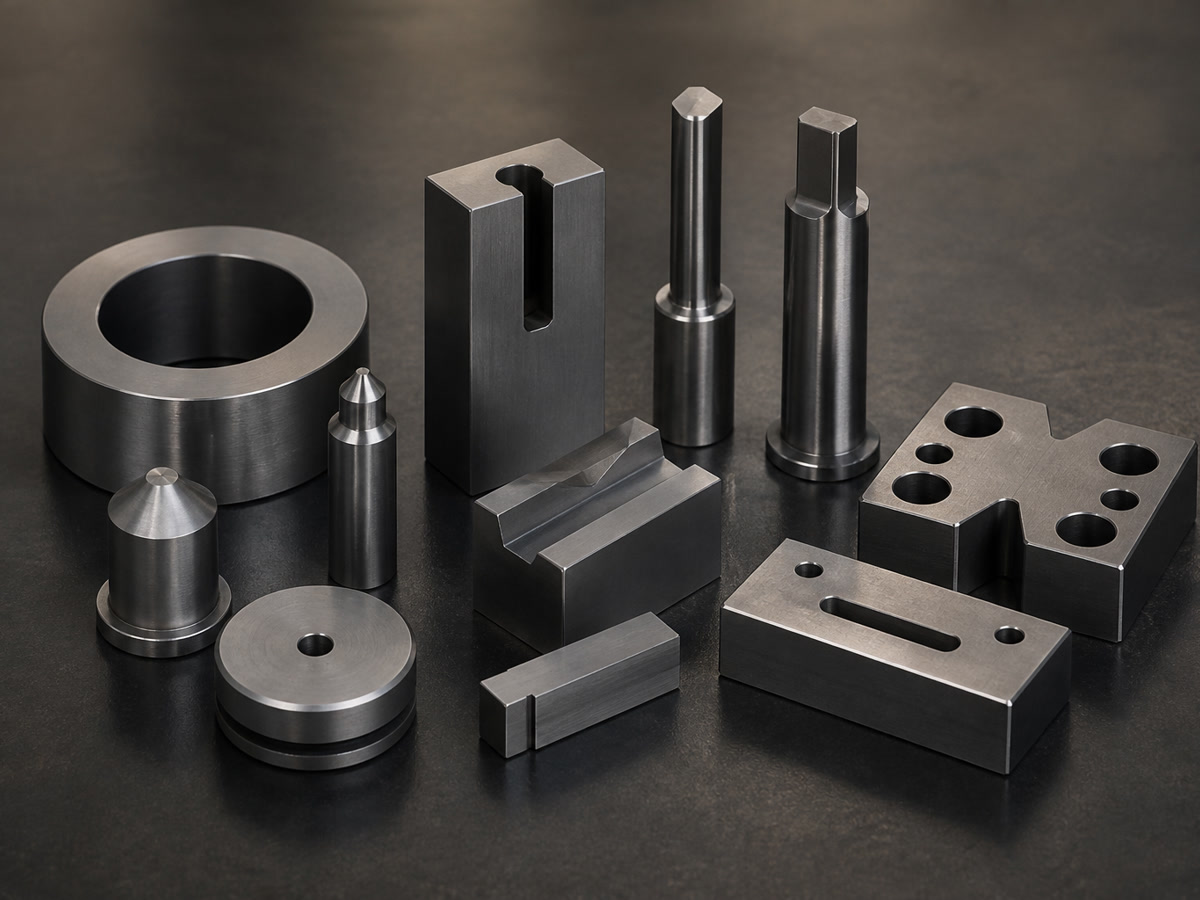

Typical M2 applications we manufacture include:
- ◆Precision cutting tools and broaches
- ◆Punches, dies, and forming tools
- ◆High-wear industrial blades and inserts
- ◆Custom wear-resistant machine components
Note: AXALLOY is best suited for high-value prototypes, low-to-medium volume production, and repeat programs. We are not an ideal fit for commodity parts purchased solely on the lowest unit price.
Start Your M2 Machining Project Today
Transfer your complex M2 tool steel projects to a reliable supplier. AXALLOY evaluates material behavior, geometry, tolerances, and inspection strategies before a single chip is cut.
Ready for a quote?
Submit your complete 2D drawings (PDF, DWG) and 3D models (STEP, IGES, SLDPRT), along with your required quantities and documentation needs. Our engineering team will provide a comprehensive review and a competitive manufacturing proposal.
