Difficult-Alloy Precision CNC Machining
Nickel Alloy CNC Machining
We machine nickel-based superalloys into tight-tolerance components — from engineering prototypes to low-volume and repeat production — with full process control and documentation.
What we do in 3 seconds:
- CNC mill/turn Inconel, Hastelloy, Monel and other nickel alloys
- Hold precise GD&T on complex, thin-walled geometries
- Provide inspection evidence, traceability and dependable delivery
Why AXALLOY for nickel alloys
Nickel alloys work harden, conduct heat poorly and punish tools. We plan and control the entire process to make your parts right the first time and repeatably thereafter.
Difficult alloys are our core
Inconel 718/625, Hastelloy C‑276/C‑22, Monel 400/K‑500, Waspaloy, Nimonic and more.
Robust process windows
Stable fixturing, toolpath strategy, chip-thinning, high-pressure coolant and heat management.
Thin-wall and feature integrity
Minimized deflection, timed semi-finish passes and burr control.
Complex geometry readiness
5‑axis milling, mill‑turn, wire/sinker EDM and precision grinding in-house/qualified.
Engineering partnership
Drawing/tolerance review, DFM feedback, fixture planning and process development.
Quality and documentation
FAI, CMM reports, material/lot traceability and project-specific records.
Responsive communication
Clear quotes, risk visibility and realistic delivery you can plan around.
Materials we machine (nickel-focused)
Our core competency spans the full range of nickel-based superalloys used in demanding applications.
Inconel
600, 601, 625, 690, 706, 718, 725, X‑750
Hastelloy
C‑22, C‑276, B‑2, X
Monel
400, K‑500
Haynes
188, 230, 282
Other nickel alloys
Waspaloy, Nimonic, Rene series
Also supporting: titanium (Grade 2/5/23), PH stainless (17‑4, 15‑5), duplex/super duplex (2205/2507), cobalt alloys (L605, MP35N), A286 and select specialty metals when projects combine materials.
Machining capabilities for nickel alloys
Multi-axis CNC milling
- 3‑axis, 4‑axis and 5‑axis machining
- Part envelope: up to 1000 × 600 × 600 mm (5‑axis: Ø500 × 400 mm)
- Positioning/repeatability: ±0.005 / ±0.003 mm
- Tolerances down to ±0.005 mm; flatness to 0.005 mm; Ra 0.8 μm machined, Ra 0.2 μm ground
- Complex contours, pockets, impellers, blades, precision interfaces
Turning and mill‑turn
- Max turning Ø500 mm × 1000 mm length; bar to Ø80 mm (turn) / Ø65 mm (mill‑turn)
- Live tooling with C/Y axes, sub‑spindle; up to 9 controlled axes
- Typical tolerance: ±0.005–0.008 mm; concentricity down to 0.008 mm
- Valve bodies, nozzles, connectors, complex shafts, multi‑feature rotational components
EDM and grinding
- Wire EDM: accuracy down to ±0.005 mm; min kerf ~0.15 mm; taper up to ±30°
- Sinker EDM: min internal R0.05 mm; Ra down to 0.4 μm
- Precision grinding: tolerance down to ±0.002 mm; roundness to 0.002 mm; Ra 0.2 μm
Minimum features supported
- Wall thickness: 0.5 mm
- Machined hole: Ø0.5 mm
- Thread size: from M1.0 (M0.8 on Swiss)
Production scope and lead time
- Quantities: 1–10,000+ parts (best fit: high‑value prototypes and low‑volume/high‑mix)
- Lead time: prototypes 5–10 business days; standard 10–20 business days; expedite available
Special processes and finishing
Heat treatment (as specified), passivation, coating/plating, precision deburring, marking, cleaning and sub‑assembly support. Full material and lot traceability is maintained across all special processes.
Inspection and documentation
- CMM 700 × 1000 × 600 mm; accuracy up to 1.8 + L/300 μm; temperature‑controlled room
- Optical measurement to ±0.002 mm; surface roughness Ra 0.05–40 μm; hardness (Rockwell, Brinell, Vickers)
Standard deliverables on request
- •Material Test Report / Mill Certs
- •Certificate of Conformance
- •First Article Inspection (FAI)
- •Ballooned drawing and full dimensional reports
- •Special-process certificates (heat treat, coating, passivation)
- •Inspection photos; custom QA plans
Typical nickel-alloy parts and industries

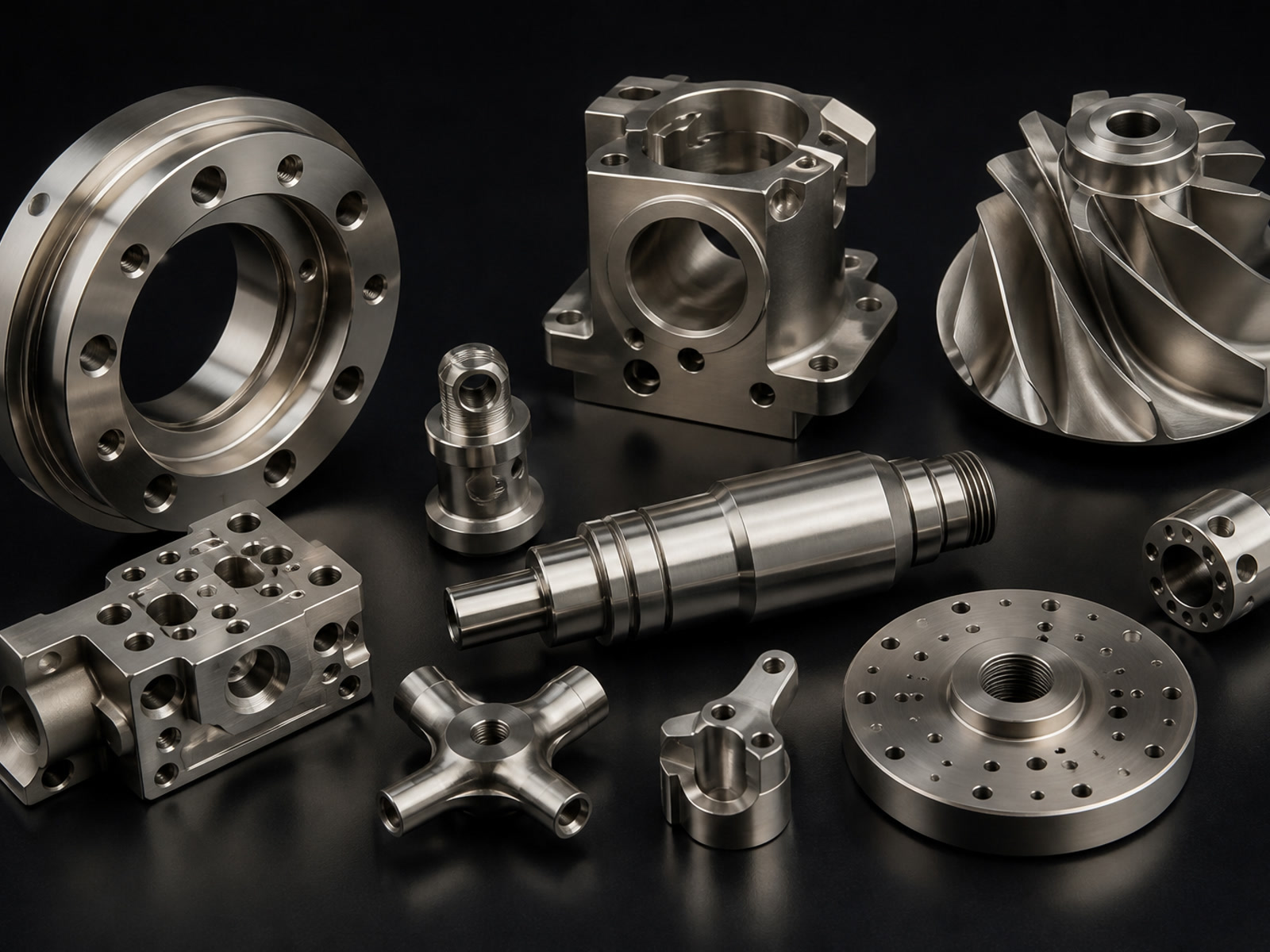

Parts we produce
Hot‑zone brackets, manifolds, turbine/engine hardware, combustion components, high‑pressure nozzles, valve/flow‑control parts, wear‑resistant fittings, semiconductor vacuum hardware and corrosion‑resistant marine components.
Industries served
Aerospace, energy, oil & gas, semiconductor equipment, medical devices, marine, robotics/automation and precision industrial equipment.
How we quote and execute
-
1
RFQ intake
We review 3D CAD, 2D drawing, material and quantity/target date.
-
2
DFM and risk review
We confirm critical features, tolerances, special processes and inspection scope.
-
3
Process route
Fixturing, tooling, machining strategy, inspection plan and documentation package.
-
4
Commercials
Firm quote, lead time, shipment terms and quality deliverables.
-
5
Build and verify
In‑process checks, CMM, FAI (if required) and documented final inspection.
-
6
Repeatability
Controlled process records for reliable re‑orders.
RFQ checklist (what to include)
- ✓ 3D CAD (STEP/IGES/X_T) and 2D drawing (PDF with full tolerances and notes)
- ✓ Material grade (e.g., Inconel 718 AMS spec), heat treatment/coating requirements
- ✓ Quantity by build and annualized estimate (if applicable)
- ✓ Critical-to-quality features and sampling/inspection requirements
- ✓ Required documentation (FAI, MTRs, CoC, special-process certs)
- ✓ Target delivery date and any packaging/export constraints
File formats and data handling
3D
STEP, STP, IGES, IGS, X_T, X_B, SLDPRT, SAT
2D
PDF, DWG, DXF
Images / ZIP
JPG, PNG, TIFF, ZIP, RAR
Units
Metric or imperial; up to 500 MB per RFQ
What sets us apart
- Nickel Alloy CNC Machining is our day‑to‑day, not a one‑off
- We prioritize manufacturability, process control and quality evidence over paper‑low pricing
- We support engineering, procurement and quality teams with proactive communication and predictable outcomes
Start your RFQ
Upload your files and requirements, or speak with our engineering team first.
Request a Quote
Upload your files and requirements and our engineering team will respond with a detailed quote.
Start Your RFQSpeak with Engineering
Prefer to discuss your project first? Our engineers are ready to help.
Contact EngineeringSend us your project details
AXALLOY Precision — Shenzhen-based CNC partner for difficult alloys, serving North America, Europe, the UK, ANZ and advanced manufacturing markets across Asia.
