Precision Machining for High-Temperature, High-Strength Waspaloy Components
Waspaloy CNC Machining Services
Waspaloy is a highly complex nickel-based superalloy renowned for its exceptional strength and oxidation resistance at extreme temperatures. However, its high shear strength and tendency to work-harden make it one of the most difficult alloys to machine.
At AXALLOY Precision, we specialize in the CNC machining of difficult-to-machine alloys. Operating from Shenzhen, we serve international engineering, procurement, and quality teams across the aerospace, energy, and oil & gas sectors. From high-value prototype development to controlled repeat production, we deliver complex Waspaloy components with uncompromising precision.
The Waspaloy Machining Challenge & The AXALLOY Approach
Machining Waspaloy requires more than just standard CNC equipment; it demands rigorous process control. The material generates extreme heat at the cutting edge, causes rapid tool wear, and is highly susceptible to work hardening and thermal distortion.
Before a single chip is cut, our engineering team evaluates material behavior, part geometry, tight tolerances, and surface requirements. We utilize highly rigid machine setups, optimized tool paths, specialized cutting tools, and high-pressure coolant strategies to prevent work hardening and ensure dimensional stability.
Whether your project involves thin walls, complex contours, or critical precision interfaces, we provide a stable, repeatable manufacturing route.
Core Machining Capabilities for Waspaloy
Our facility is equipped to handle the unique demands of nickel-based superalloys across a volume range of 1 to 10,000+ parts.
1. Multi-Axis CNC Milling
We utilize advanced 3-axis, 4-axis, and 5-axis milling centers to process complex structural components, impellers, and brackets.
- Maximum 5-Axis Part Size: Ø500 × 400 mm
- Milling Tolerance: Down to ±0.005 mm
- Positioning Accuracy: ±0.005 mm
- Minimum Wall Thickness: 0.5 mm
2. CNC Turning & Mill-Turn Machining
For shafts, sleeves, nozzles, and multi-feature rotational components, our up to 9-axis mill-turn centers allow for complete machining with fewer setups, ensuring stronger feature relationships.
- Maximum Turning Diameter: Ø500 mm
- Concentricity & Roundness: Down to 0.008 mm and 0.005 mm respectively
- Live Tooling: Off-center machining, cross drilling, and threading (Down to M1.0)
3. Wire & Sinker EDM
When Waspaloy features are too deep, narrow, or complex for traditional cutting tools, we utilize precision Electrical Discharge Machining (EDM).
- Wire EDM Accuracy: Down to ±0.005 mm (Max thickness 300 mm)
- Sinker EDM: Ideal for deep cavities, blind features, and sharp internal corners (Minimum R0.05 mm)
- EDM Surface Finish: Down to Ra 0.8 μm (Wire) and Ra 0.4 μm (Sinker)
4. Precision Grinding
For critical sealing surfaces and bearing fits requiring ultra-fine finishes.
- Grinding Types: Surface, cylindrical, and centerless grinding
- Grinding Tolerance: Down to ±0.002 mm
- Surface Finish: Down to Ra 0.2 μm
Typical Waspaloy Applications
Due to its ability to maintain structural integrity at temperatures up to 870°C (1600°F), Waspaloy is primarily utilized in demanding industries such as Aerospace, Energy, and Marine.

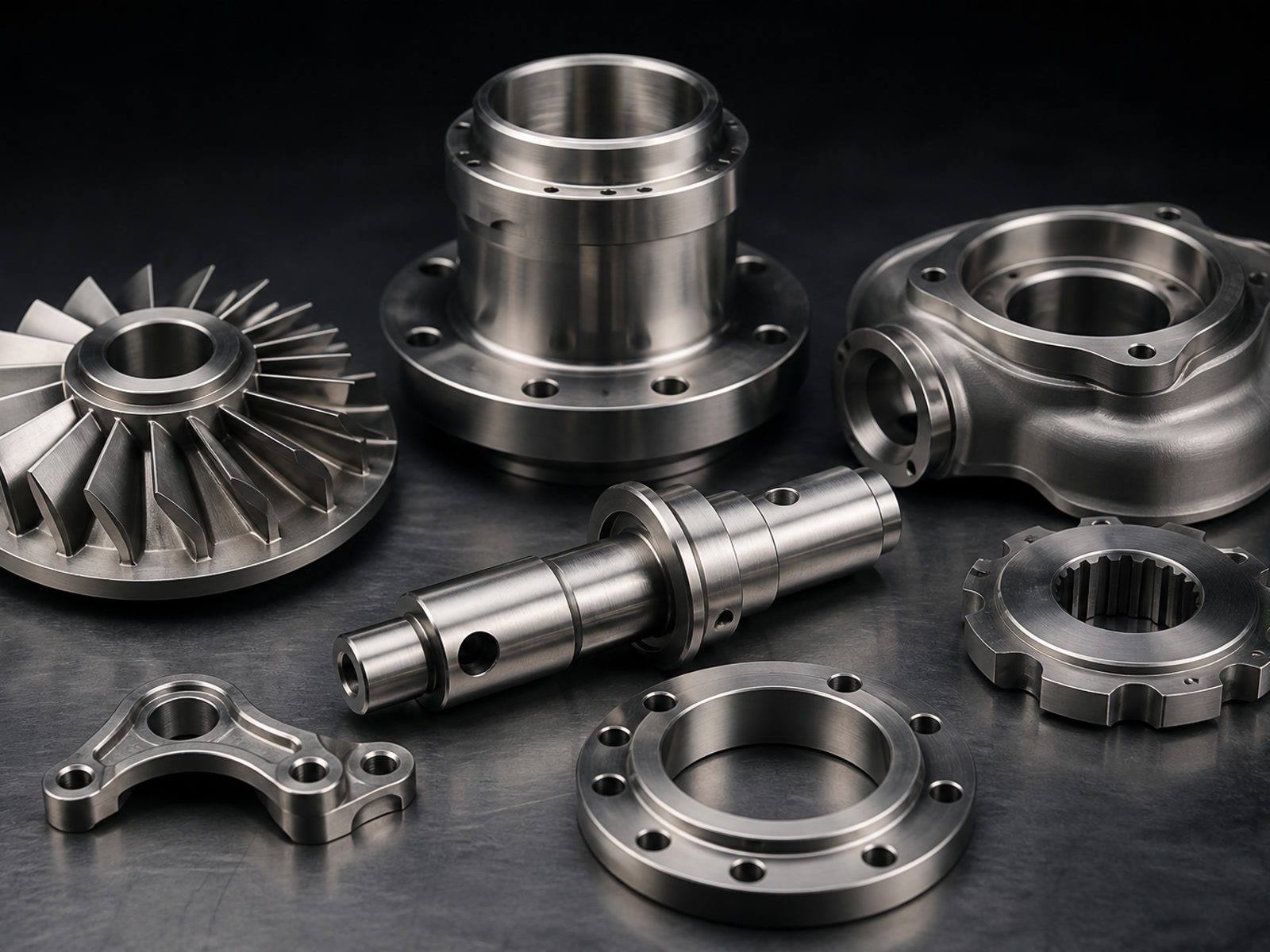

Gas turbine engine parts (blades, seals, rings, and shafts)
Aerospace fasteners and structural brackets
Exhaust system components
High-temperature valve bodies and manifolds
Precision seals and combustion chamber components
Quality Assurance & Documentation
AXALLOY is built for OEMs, Tier 1/Tier 2 suppliers, and engineering firms that require strict compliance and verifiable inspection evidence. We do not just deliver parts; we deliver peace of mind.
Our temperature-controlled inspection room is equipped with advanced CMMs (Accuracy: 1.8 + L/300 μm) and optical measurement systems.
Available Quality Documentation for Waspaloy Projects:
- Material Test Reports (MTR) & Mill Test Certificates
- First Article Inspection Reports (FAIR)
- Full Dimensional Inspection & Ballooned Drawing Reports
- Certificate of Conformance (CoC)
- Surface Roughness & Special Process Records (Heat treatment, passivation)
- Full Material and Lot Traceability
Why Partner with AXALLOY for Waspaloy Machining?
We are not a fit for commodity parts purchased solely on the lowest unit price. We are the right partner for projects that demand manufacturability, process control, and dependable communication.
Engineering Support
We provide comprehensive drawing reviews, DFM feedback, and fixture planning prior to production.
Scalability
From engineering prototypes (5–10 days lead time) to batch production (500–10,000+ parts).
Supply Chain Reliability
We are the ideal solution for high-value components, repeat programs, or projects being transferred from an unreliable supplier.
Start Your Waspaloy Project Today
Ready to validate your design or secure a stable production route for your Waspaloy components?
Supported File Formats:
3D CAD
STEP, STP, IGES, IGS, X_T, SLDPRT
2D Drawings
PDF, DWG, DXF
Please include material specs, critical tolerances, and required documentation.
Upload Size: Up to 500 MB per RFQ.
Standard Lead Time: 10–20 business days | Expedited Prototype Services Available.
