CNC Milling Solutions
Engineered for high-value applications and mission-critical specifications. At AXALLOY, our multi-axis CNC milling centers produce complex geometries and micrometer-level tolerances from demanding superalloys, refractory metals, and engineering plastics.
Milling Capability Benchmarks
- Positioning Repeatability
- ±0.0025 mm (±0.0001 in)
- Multi-Axis Kinematics
- 3-Axis, 4-Axis & Simultaneous 5-Axis
- Standard Surface Roughness
- Ra 0.4 µm (16 µin) as-machined
- Core Alloys
- Inconel, Titanium, Hastelloy, Monel
- Quality Assurance
- AS9100D & ISO 9001:2015 CMM Audited
Refractory & Superalloys
Optimized high-feed tooling geometries and cryogenic through-spindle cooling dedicated to heat-resistant nickel and titanium alloys.
Simultaneous 5-Axis Work
Elimination of multi-setup stackup errors through 5-axis indexing and continuous toolpathing for complex impellers and airfoils.
Thin-Wall Stability
Custom high-damping fixturing and dynamic resonant vibration suppression allowing structural wall thicknesses down to 0.4 mm.
Comprehensive FAI & Trace
Complete material lot traceability, raw mill certificates, and AS9102 First Article Inspection reports via Zeiss coordinate measuring.
CNC Milling Capabilities Matrix
Evaluate production configurations across our core CNC milling disciplines to select the optimal envelope, cycle velocity, and dimensional accuracy for your program.
| Milling Classification | Material Suitability | Core Process & Kinematics | Key Applications | Standard Lead Time | Engineering Review |
|---|---|---|---|---|---|
| 3-Axis CNC Milling | Alloy Steels, Tool Steels, Aluminum 6061/7075, Brass | Rigid prismatic cutting, deep hole tapping, planar face contouring | Baseplates, heavy brackets, precision test fixtures, enclosures | 3–5 Business Days | Quote 3-Axis |
| 4-Axis CNC Milling | Stainless 304/316L, 17-4PH, Invar, Nitronic 60 | Rotary indexing (A-axis), continuous spiral helical slots, wrap geometry | Cam shafts, cylindrical manifolds, valve bodies, spline couplings | 4–7 Business Days | Quote 4-Axis |
| 5-Axis CNC Milling | Titanium Ti-6Al-4V, Inconel 718, Waspaloy, Monel K500 | Simultaneous multi-axis kinematic tool orientation, undercut milling | Blisks, turbine impellers, prosthetic joints, complex housings | 5–10 Business Days | Quote 5-Axis |
| Thin-Wall CNC Milling | Aerospace Aluminum 7050, Magnesium AZ91D, Titanium Gr. 5 | Balanced high-speed step machining, resonance monitoring, vacuum chucks | Avionics chassis, satellite wave guides, lightweight heat sinks | 7–12 Business Days | Quote Thin-Wall |
| Tight-Tolerance Milling | Hardened Tool Steels (HRC 55+), Hastelloy C276, Kovar | Thermal-compensated spindle control, in-situ Renishaw probing | Optical alignment stages, dowel interfaces, aerospace fuel systems | 5–8 Business Days | Quote Tolerancing |
Precision CNC Milling Solutions Directory
Browse specialized milling configurations, axis topologies, and material setups delivered by AXALLOY for precision industrial demands.

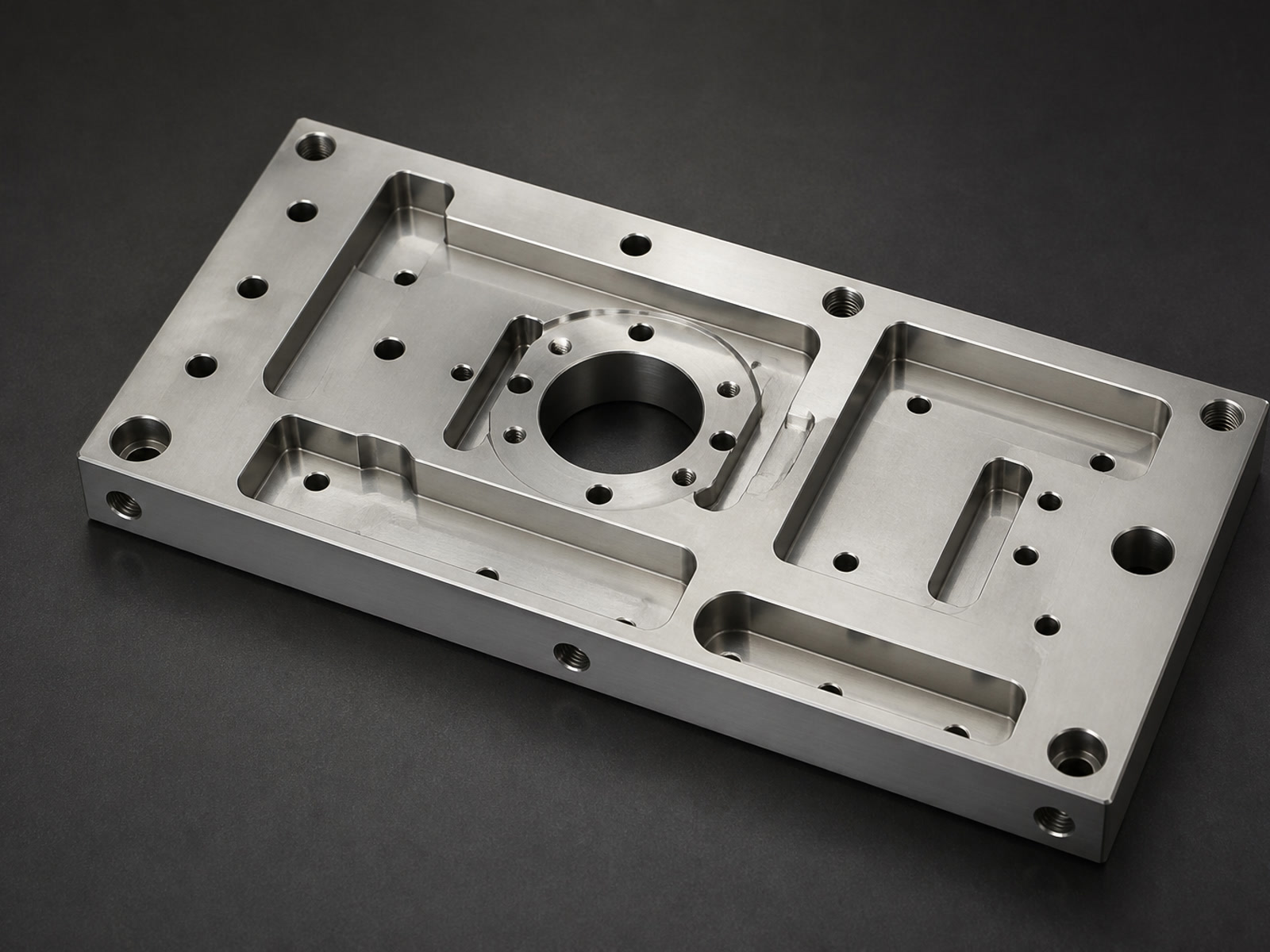

3-Axis CNC Milling Services for Difficult Alloys
AXALLOY Precision delivers high-precision 3-axis CNC milling for complex contours, thin walls, and precision interfaces on nickel-based superalloys, titanium, and other difficult alloys. With ±0.005 mm tolerances, up to
View details →

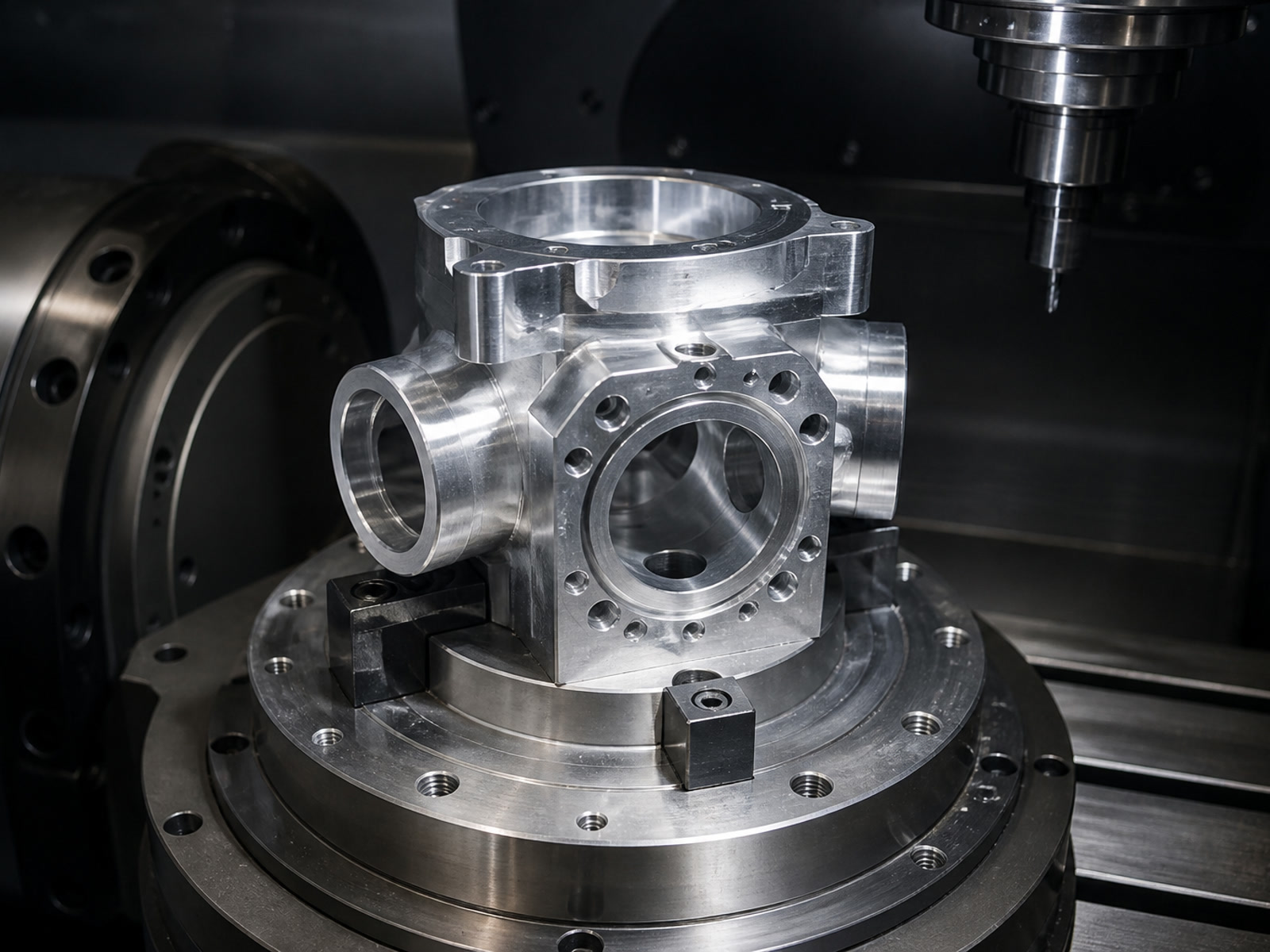

4-Axis CNC Milling Services for Difficult Alloys
Source precision 4-axis CNC milling for difficult alloys like Inconel and titanium. We deliver tolerances down to ±0.005mm for complex parts. Get a quote.
View details →

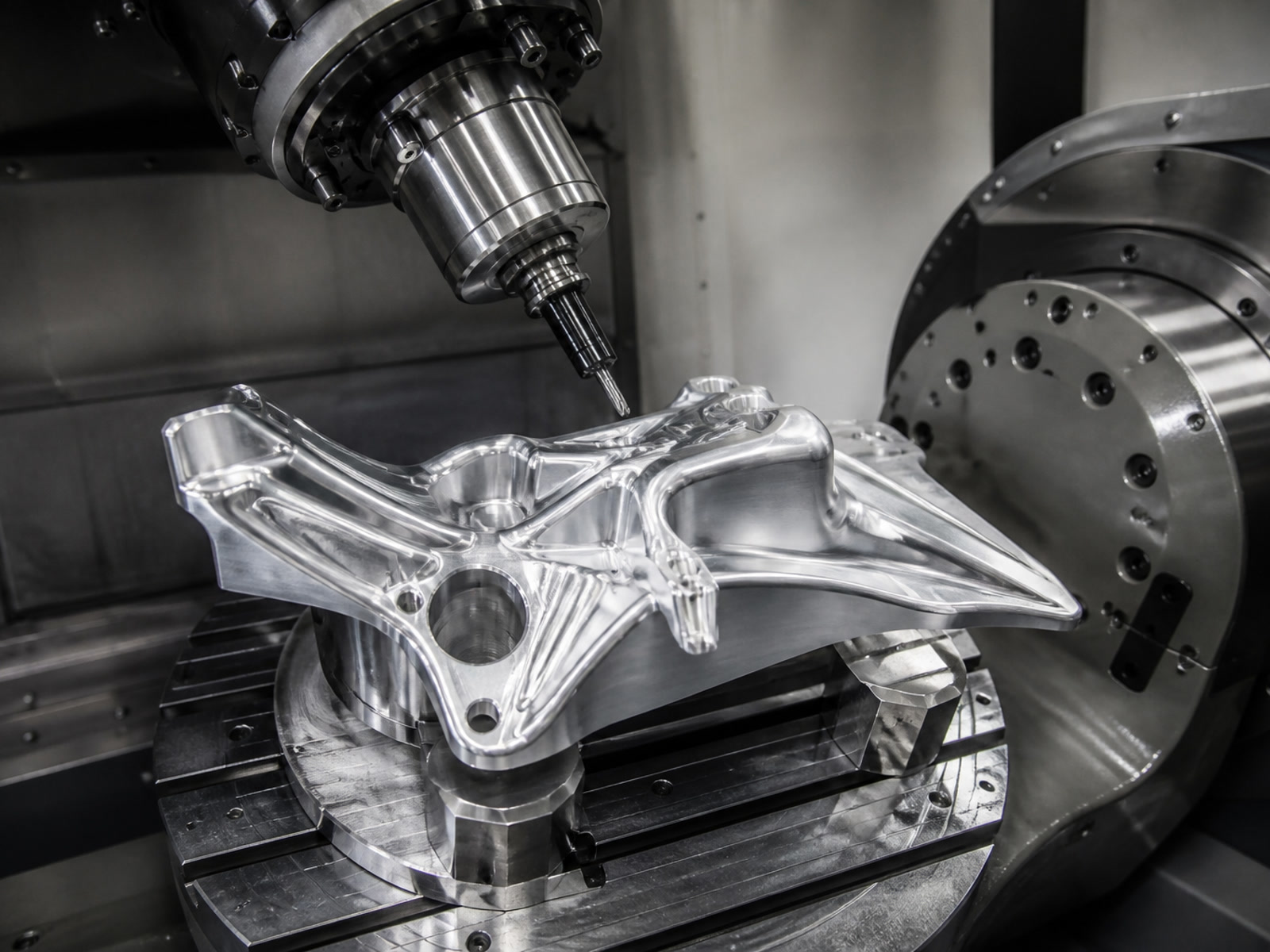

5-Axis CNC Milling for Difficult Alloys
AXALLOY provides precision 5-axis CNC milling for difficult alloys like Inconel and titanium. Achieve ±0.005 mm accuracy for complex parts. Get a quote.
View details →
Complex CNC Milling for Difficult Alloys
Partner with AXALLOY for complex CNC milling of difficult-to-machine alloys. We offer 3, 4, and 5-axis precision machining down to ±0.005mm. Get a quote.
View details →

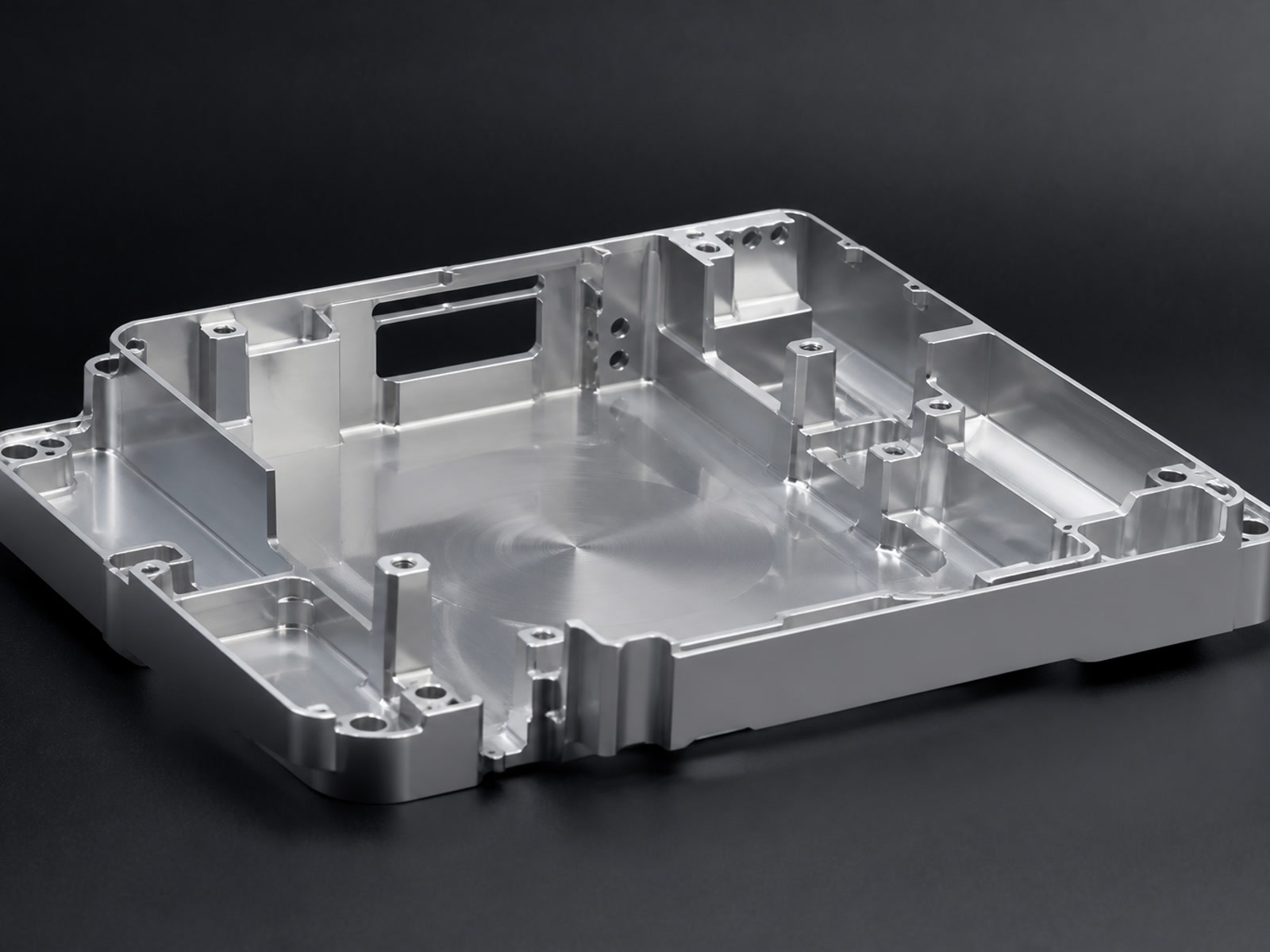

Thin-Wall CNC Milling for Difficult Alloys
Precision thin-wall CNC milling for difficult alloys like Inconel & titanium. We machine complex parts down to 0.5mm with CMM inspection. Request a quote today.
View details →

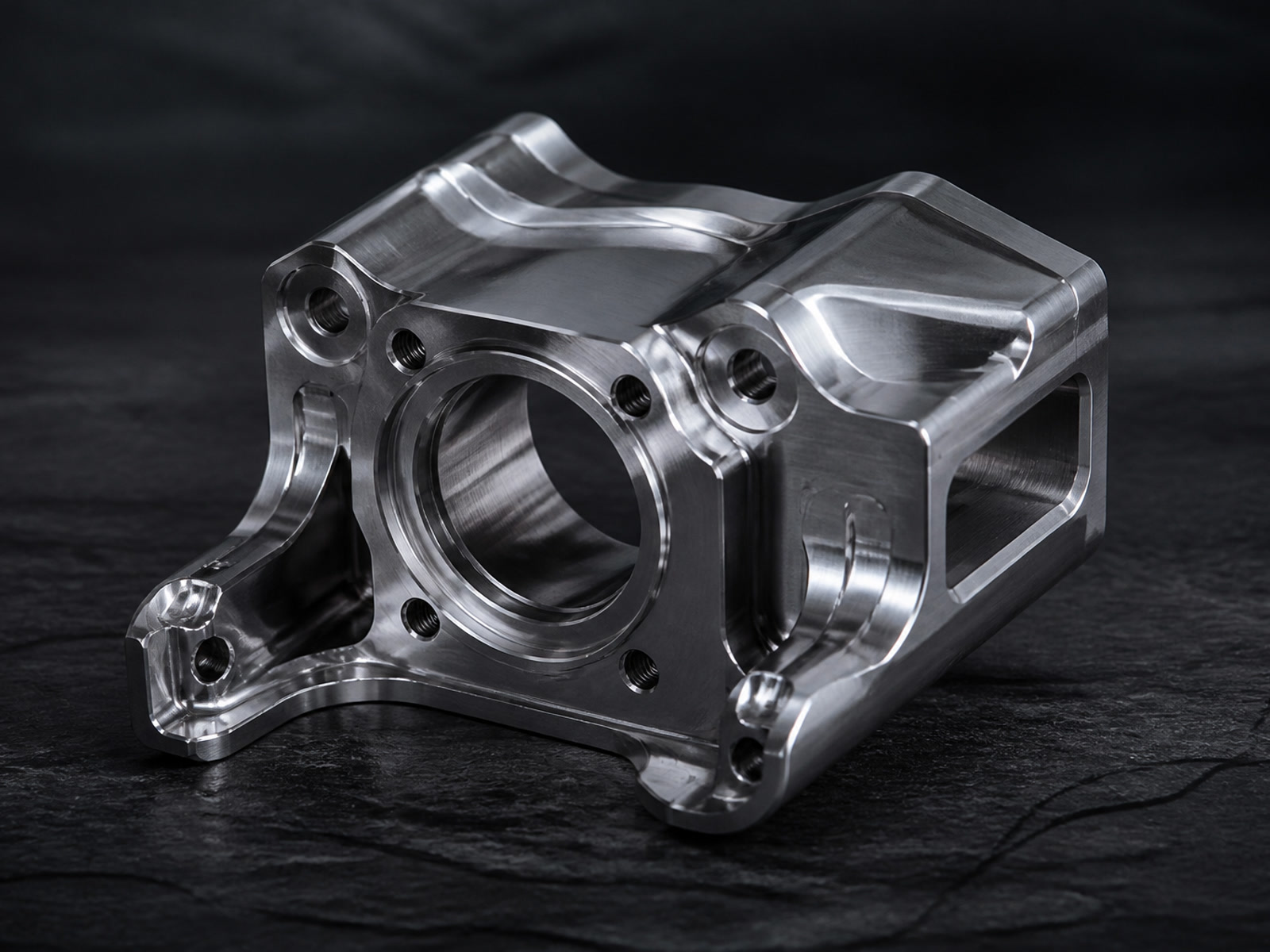

High-Precision CNC Milling for Difficult Alloys
High-Precision CNC Milling for complex components in Inconel, titanium, and stainless steels. 3/4/5-axis machining, tight tolerances, inspection evidence. Get a quote.
View details →

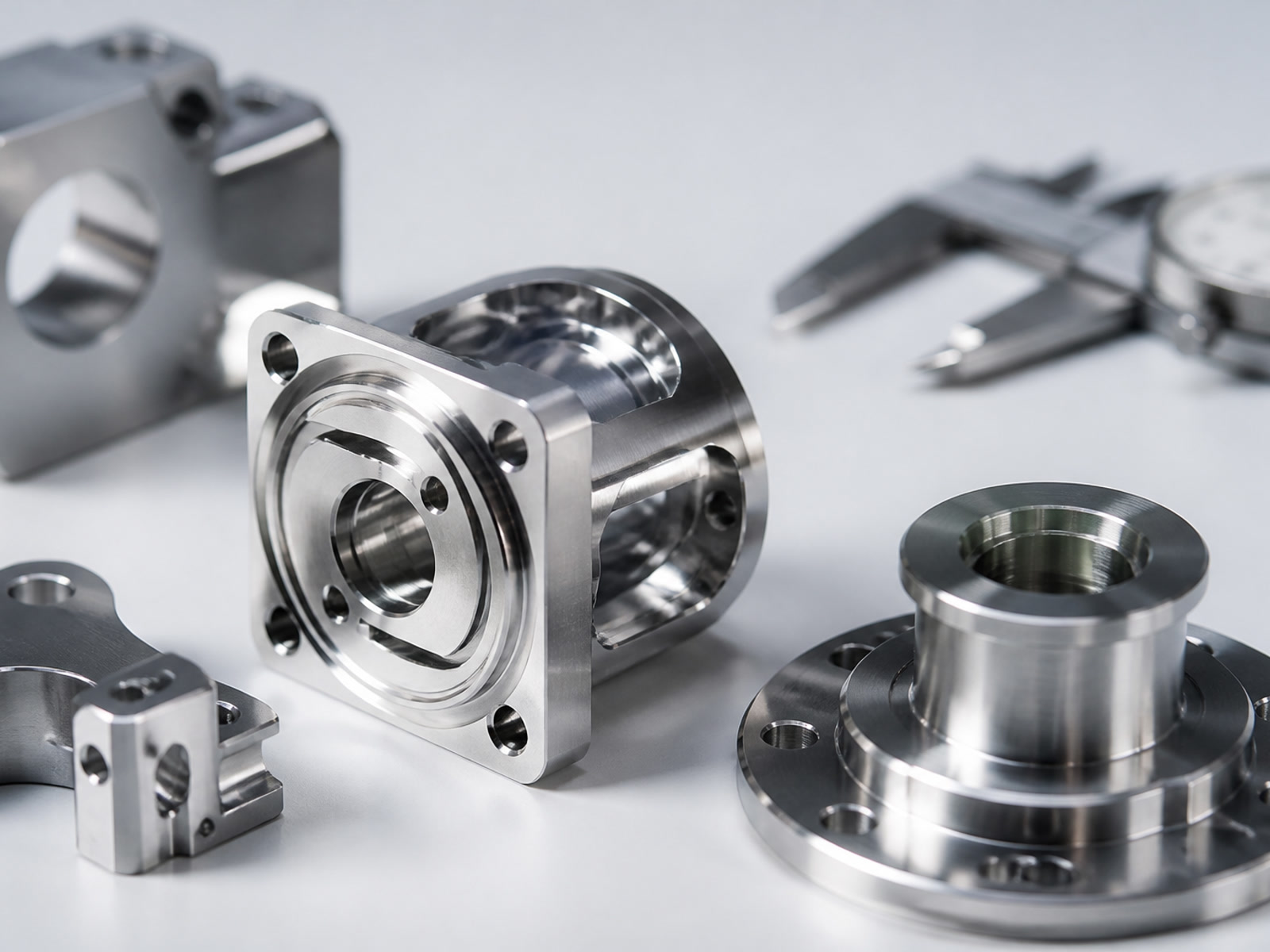

Tight-Tolerance CNC Milling for Difficult Alloys
AXALLOY specializes in tight-tolerance CNC milling for difficult alloys. We deliver ±0.005 mm precision, 3/4/5-axis machining, and CMM inspection. Get a quote.
View details →

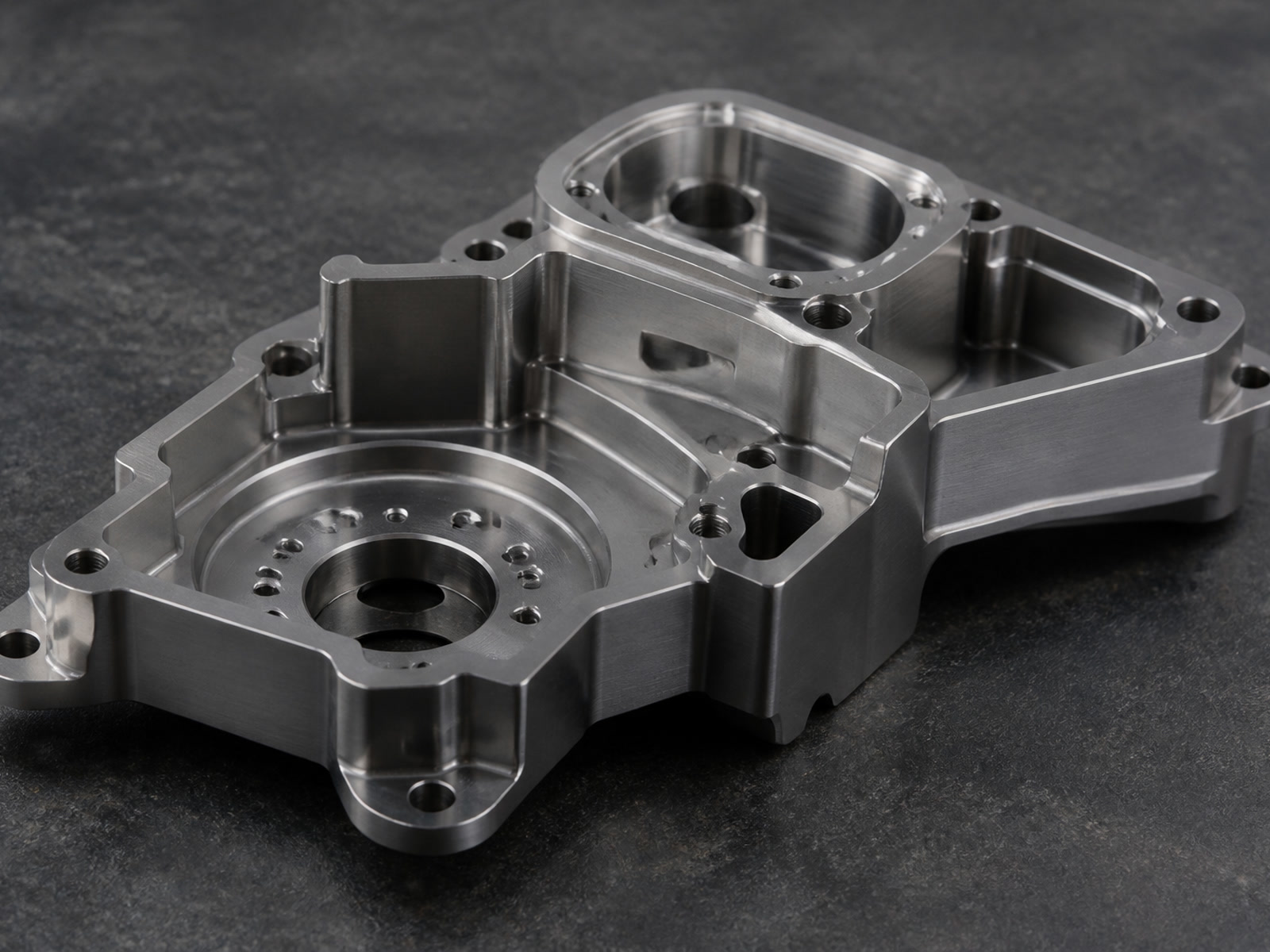

Difficult-Alloy CNC Milling | AXALLOY Precision
Five-axis CNC milling for Inconel, Hastelloy, Titanium, PH stainless and other difficult alloys. Prototype to low-volume production with tight tolerances, process control and full documentation.
View details →Alloy Selection Guidance
Milling high-temperature alloys demands careful balancing of cutting speeds, radial chip thinning, and carbide grades. Our engineering staff assists with Design for Manufacturability (DFM) reviews to prevent work hardening and control internal stresses.
Need a Material Recommendation?
Our metallurgists assist in choosing between Inconel 625, 718, or alternative nickel superalloys based on operating temperature and yield requirements.
Nickel-Based Superalloys
Inconel 718, 625, Hastelloy C-276, Waspaloy
Maintained with rigid tool holding, high-pressure coolant (1000+ PSI), and ceramic/PVD coated inserts to guarantee thermal dissipation and profile consistency.
Titanium Alloys
Grade 2, Grade 5 (Ti-6Al-4V), Ti-6Al-4V ELI
Low thermal conductivity counteracted with optimized engagement angles, eliminating burr formation and preventing heat transfer back into the workpiece.
Precipitation Hardening Steels
17-4PH, 15-5PH, 13-8Mo
Machined in both solution-treated and peak-aged conditions (H900 to H1150), controlling dimensional shrinkage through tightly regulated heat treatment integration.
Controlled Expansion Alloys
Kovar, Invar 36, Alloy 42
Stress-relief cycles combined with light-finishing passes ensure zero mechanical distortion across extreme temperature cycling ranges.
Initiate Your CNC Milling Project
Upload your CAD models (STEP, IGES, Parasolid) alongside 2D dimensional drawings (PDF) detailing critical GD&T callouts. Our manufacturing engineers will return an actionable DFM analysis and quote within 24 hours.
Strict Non-Disclosure Guarantee
All data transfers are encrypted and governed under binding NDA terms.
Full Material Certification
EN 10204 3.1 chemical and mechanical inspection documentation included.
Direct Engineering Dialogue
Communicate directly with our CAM programmers and tooling specialists.
RFQ Submission Terminal
Please provide project parameters and files below for review by our engineering team.
Request a Quote
Tell us about your component requirements and material challenges.
