Tool Steels Precision CNC Machining Services
AXALLOY provides high-precision CNC milling, turning, wire EDM, and precision grinding for wear-resistant and high-impact tool steels including A2, D2, H13, and M2. We control the complete process chain—from roughing and stress relief to post-heat-treat hard machining—ensuring strict dimensional stability, tight tolerances down to ±0.005 mm, and validated surface integrity.
Predictable Quality for High-Stress Tool Steel Components
Tool steels demand rigorous thermal management, dedicated cutting parameters, and strict sequence planning to avoid distortion, micro-cracks, and residual stress. AXALLOY integrates multi-axis milling, wire EDM, and sub-micron grinding to guarantee both profile accuracy and metallurgical integrity.
Pre- & Post-Hardening Machining
Optimized roughing with intermediate stress relief followed by controlled vacuum hardening and precision hard milling or CBN turning for parts up to 64 HRC.
- Minimal distortion during quenching
- Dedicated high-rigidity tooling
Wire EDM & Sub-Micron Grinding
Sub-micron cylindrical and surface grinding achieving flatness down to 0.003 mm, combined with precision wire EDM for tight internal radii (R0.05 mm) and intricate die pockets.
- Surface finish down to Ra 0.2 μm
- Zero recast layer risk with skim passes
Full Inspection & Certification
Complete dimensional inspection utilizing Zeiss CMMs, optical measurement, hardness testing (Rockwell/Vickers), ballooned drawings, and raw material traceability.
- First Article Inspection (FAI) reports
- Heat treatment & hardness certificates
Tool Steel Grades Machined at AXALLOY
Select the grade optimized for your application’s required wear resistance, impact toughness, and operational temperature.
A2 Tool Steel
Air-HardeningBalanced toughness and wear resistance with superior dimensional stability during heat treatment. Ideal for punches, blanking dies, and precision structural blocks.
D2 Tool Steel
High-Carbon / CrHigh abrasion resistance and deep hardening capability. Excels in high-wear stamping, forming rolls, shear blades, and heavy-duty forming tools.
H13 Tool Steel
Hot-WorkHigh thermal fatigue resistance, high hot hardness, and excellent core toughness. Perfect for die-casting inserts, hot extrusion tools, and forging dies.
M2 High-Speed Steel
Moly-TungstenExceptional red-hardness, edge retention, and wear resistance under elevated friction. Preferred for cutting tooling, wear guides, and precision punches.
Tool Steel Machining Guides & Services
Review detailed machining specifications, heat treatment strategies, and design considerations across our primary tool steel grades.

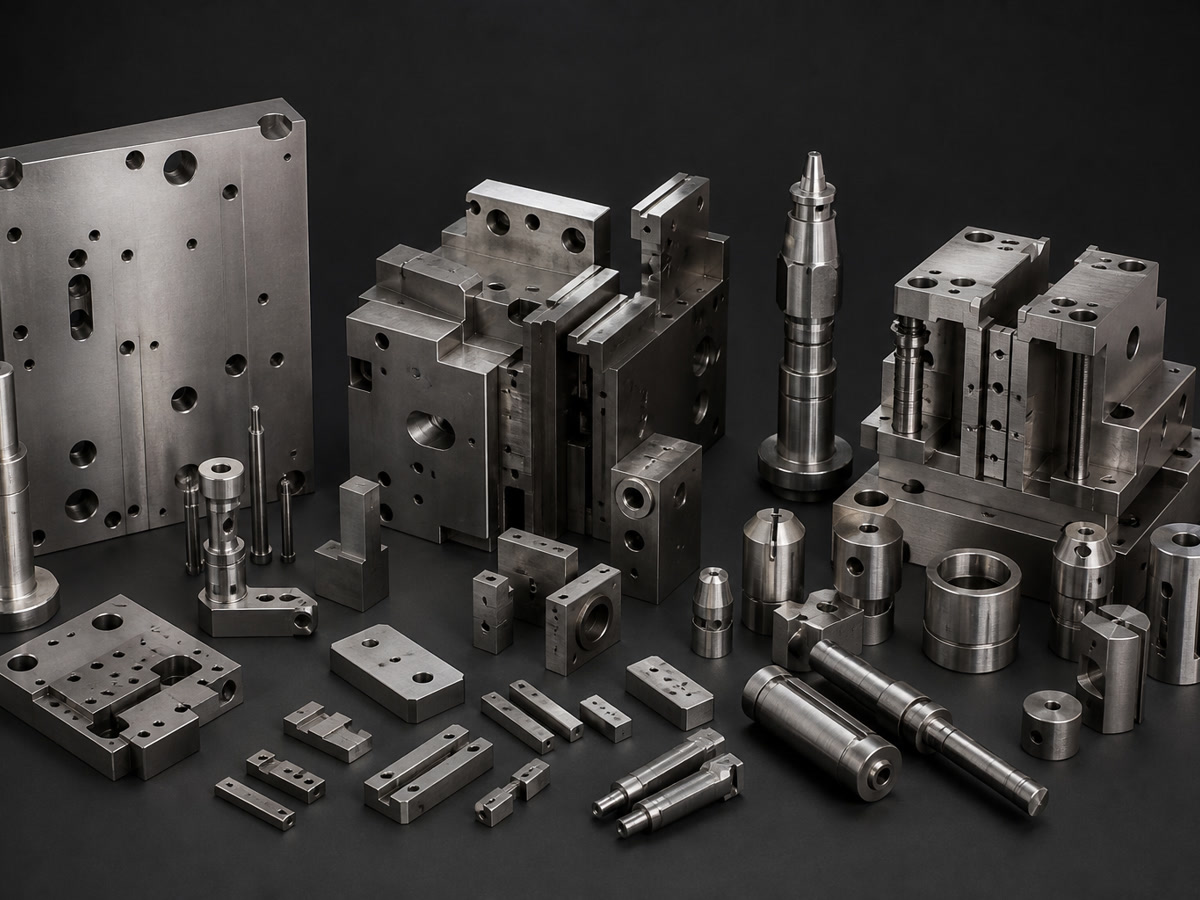

Tool Steel CNC Machining (A2, D2, H13, M2)
Precision tool steel CNC machining for A2, D2, H13 & M2. We deliver complex parts that hold tight tolerances after heat treatment with full FAI. Get a quote!
View details →Standard Tool Steel Machining Tolerances
| Machining Operation | Standard Dimensional Tolerance | Precision Tolerance | Typical Surface Finish | Maximum Capacity |
|---|---|---|---|---|
| 3/4/5-Axis CNC Milling | ±0.010 mm | Down to ±0.005 mm | Ra 0.8–1.6 μm | 1,000 × 600 × 600 mm |
| CNC Turning & Mill-Turn | ±0.010 mm | Down to ±0.005 mm | Ra 0.8 μm | Ø500 × 1,000 mm |
| Wire EDM | ±0.008 mm | Down to ±0.005 mm | Ra 0.8 μm | 600 × 400 × 300 mm |
| Surface & Cylindrical Grinding | ±0.005 mm | Down to ±0.002 mm | Ra 0.2 μm | 600 × 300 mm / Ø300 mm |
Start Your Tool Steel RFQ
Upload your technical drawings and 3D models for detailed manufacturability feedback, material heat treatment verification, and an itemized production quote.
Submit Your Requirements
Provide your part specifications, alloy choice, and target quantities for an engineering review.
Request a Quote
Tell us about your component requirements and material challenges.
